Elves Mori AeroX Carbon Gravel Disc Frame (Excludes Handle Bars)

$1,800.00

Delivery 5 - 8 Weeks (Frames painted from Raw)

NB - Handlebars Sold Separate

SZEO Mori Gravel - The Ultimate Aero Gravel Frame

Precision Engineered for Speed & Performance

The SZEO Mori Gravel is designed to push the limits of gravel racing. Crafted from Toray T800 & T1000 Carbon Fibre using EPS Molding Technology, this lightweight yet robust frame ensures optimal aerodynamics, agility, and durability. Whether racing or adventuring, the Mori Gravel delivers unmatched versatility across all terrains.

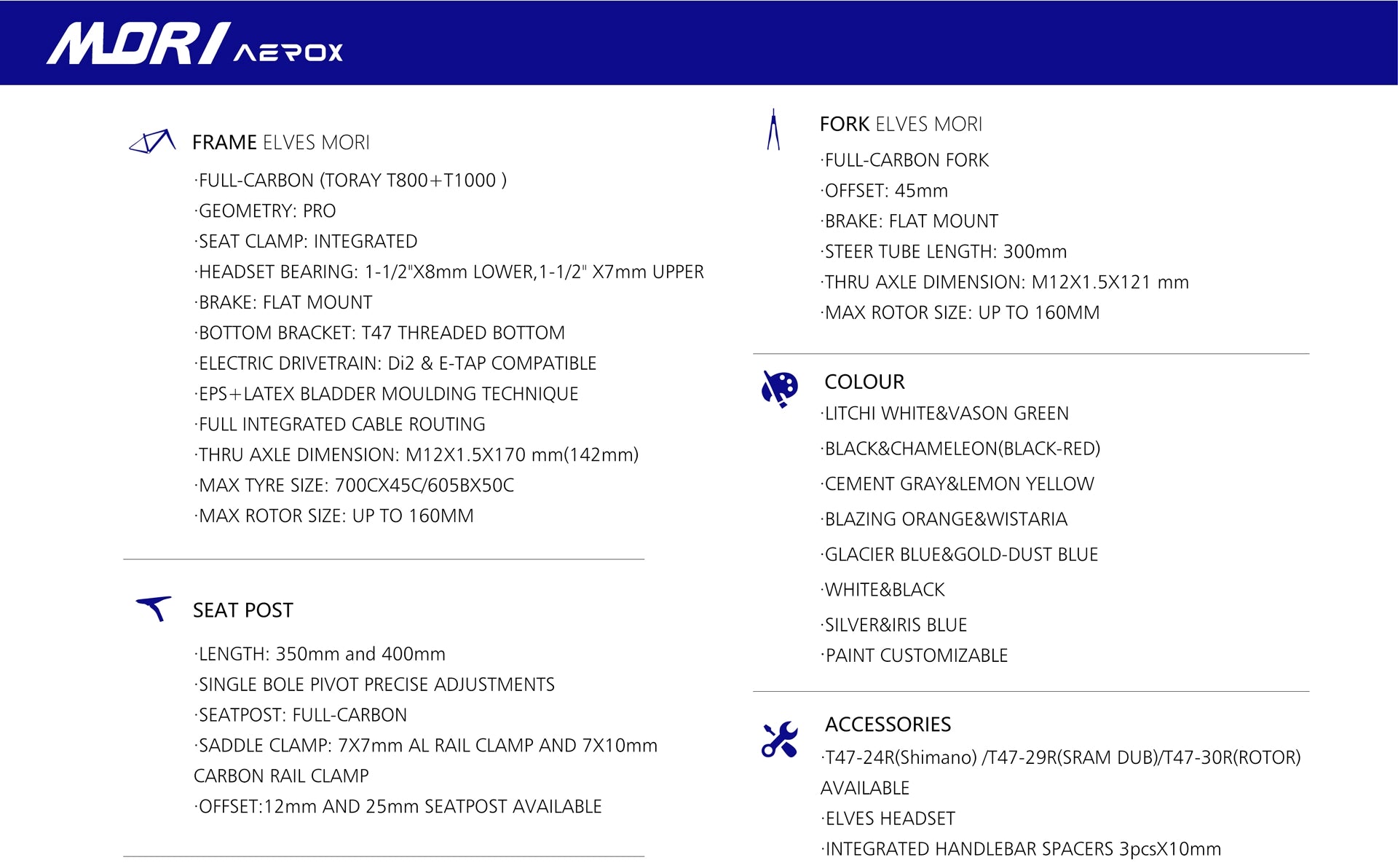

Key Specifications

Frame Material: Toray T800 & T1000 Carbon Fibre
Frame Sizes: 46cm, 49cm, 52cm, 54cm, 56cm
Weight: To be confirmed
Fork Weight: To be confirmed (uncut steerer)
Internal Cable Routing: Fully integrated
Max Tyre Clearance: 700c x 45mm & 650b x 50mm
Rotor Size: 140mm or 160mm
Bottom Bracket: Threaded T47 Senicx Ceramic (Shimano 24mm, SRAM DUB 28.99mm, or 30mm)
Gear Mech Hanger: UDH-compatible, 2 supplied
Thru-Axles: 100mm (front) & 142mm (rear)
Seatpost: 12mm or 350mm, 215g (+/-), adjustable clamp (7x7mm & 7x10mm)
Groupset Compatibility: 10/11/12/13-speed mechanical & electronic (Di2 & AXS)
Certification: ISO & EN standards compliant

Engineered for Race-Winning Performance

Our expert engineers have leveraged years of aero road bike technology to create a gravel frame that redefines speed and handling. Drawing inspiration from the Elves Falath Pro, the Mori Gravel frame balances aerodynamics, stiffness, and comfort, ensuring peak performance across all gravel conditions.

Optimized for Stability & Control

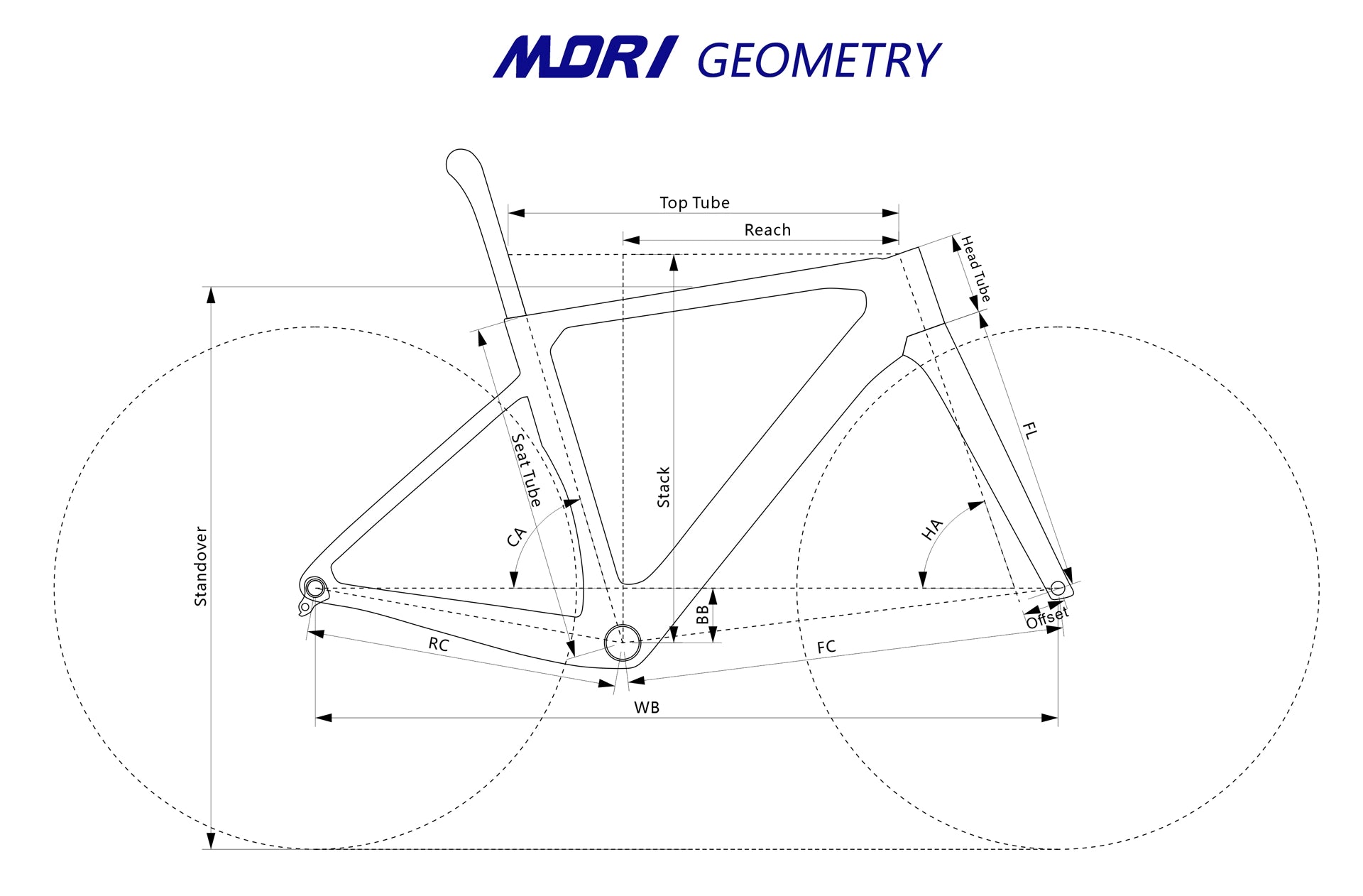

Refined Geometry: Lower head tube angle and optimized fork trail for enhanced control on rough terrain
Extended Reach & Wheelbase: Ideal for tackling technical courses while maintaining speed and balance
Enhanced Power Transfer: Reinforced bottom bracket and headstock maximize efficiency
Shock Absorption: Rear stays designed to minimize vibrations for a smoother ride

UDH Hanger for Seamless Compatibility

The SRAM Universal Derailleur Hanger (UDH) ensures perfect alignment and improved shifting while offering compatibility with SRAM RED, XPLR AXS, and other leading drivetrain brands.

Customizable Handlebars for Any Riding Style

To suit different riding preferences, the Mori Gravel offers two drop bar options:

Orome 7-degree Flared Drop Bar: Optimized for competitive racing
Orome 17-degree Flared Drop Bar: Ideal for endurance rides and bikepacking

Designed for Adventure & Versatility

Integrated mounting points for top bags, water bottle cages, and rear racks
Internal cable routing for added durability and aerodynamics

Premium OROME Gravel Wheelsets

Paired with the Mori Gravel, our Orome TH36G wheelset offers the perfect balance of aerodynamics, stability, and lightweight performance. With a 36mm rim depth, 23mm internal width, and 32mm external width, these wheels enhance traction and comfort for superior ride quality. Additional wheelset options include the TH30D and TH50D (internal width 22mm, external width 29mm).

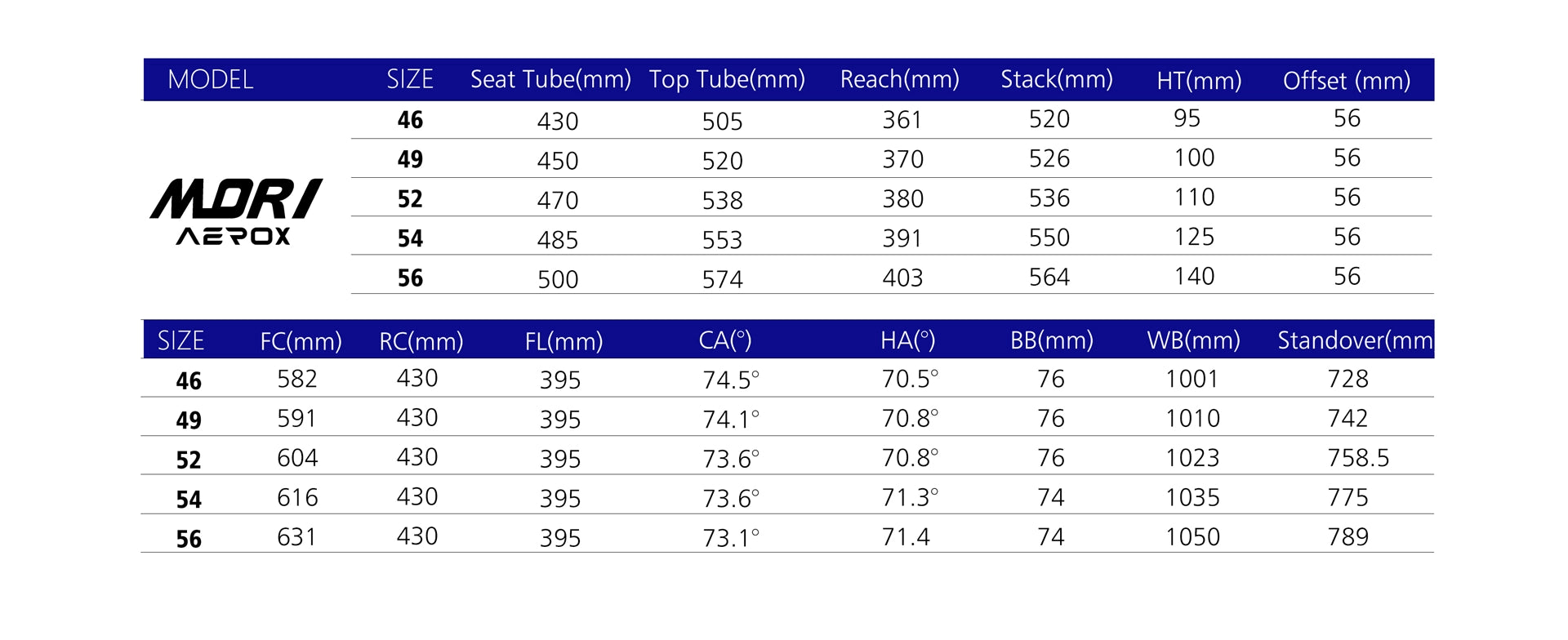

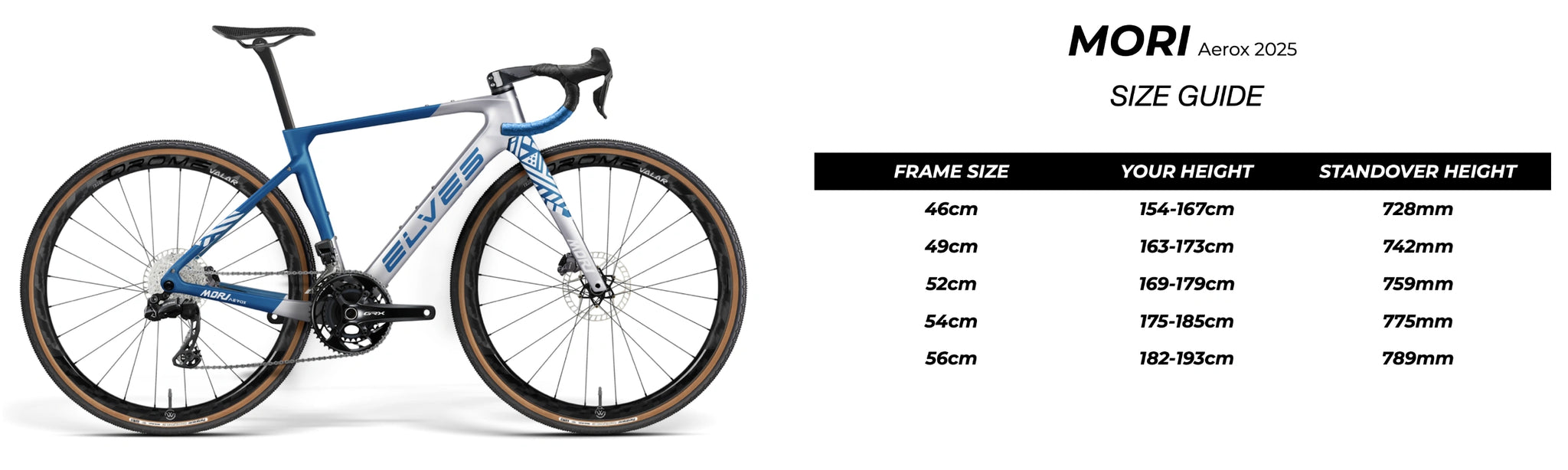

Size Guide & Accessories

Available in 46cm, 49cm, 52cm, 54cm, and 56cm, the Mori Gravel comes with:

Headset Bearings
Two Gear Mech Hangers
Seat Clamps (7x7mm & 7x10mm)
Cable Routing Stem Adapter
Choice of Senicx Ceramic T47 Bottom Bracket
Seatpost options: 12mm or 25mm setback for a tailored fit

Custom Paint & Warranty

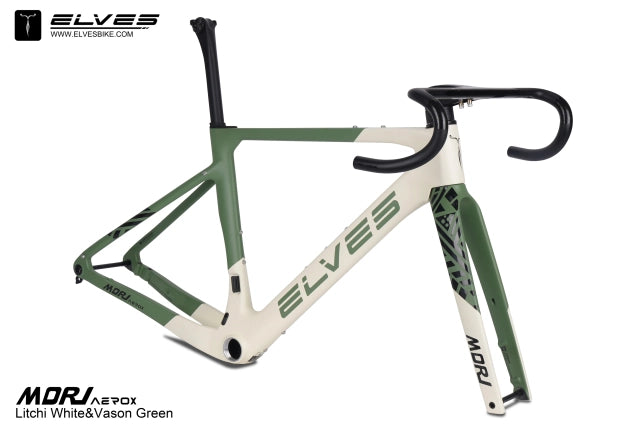

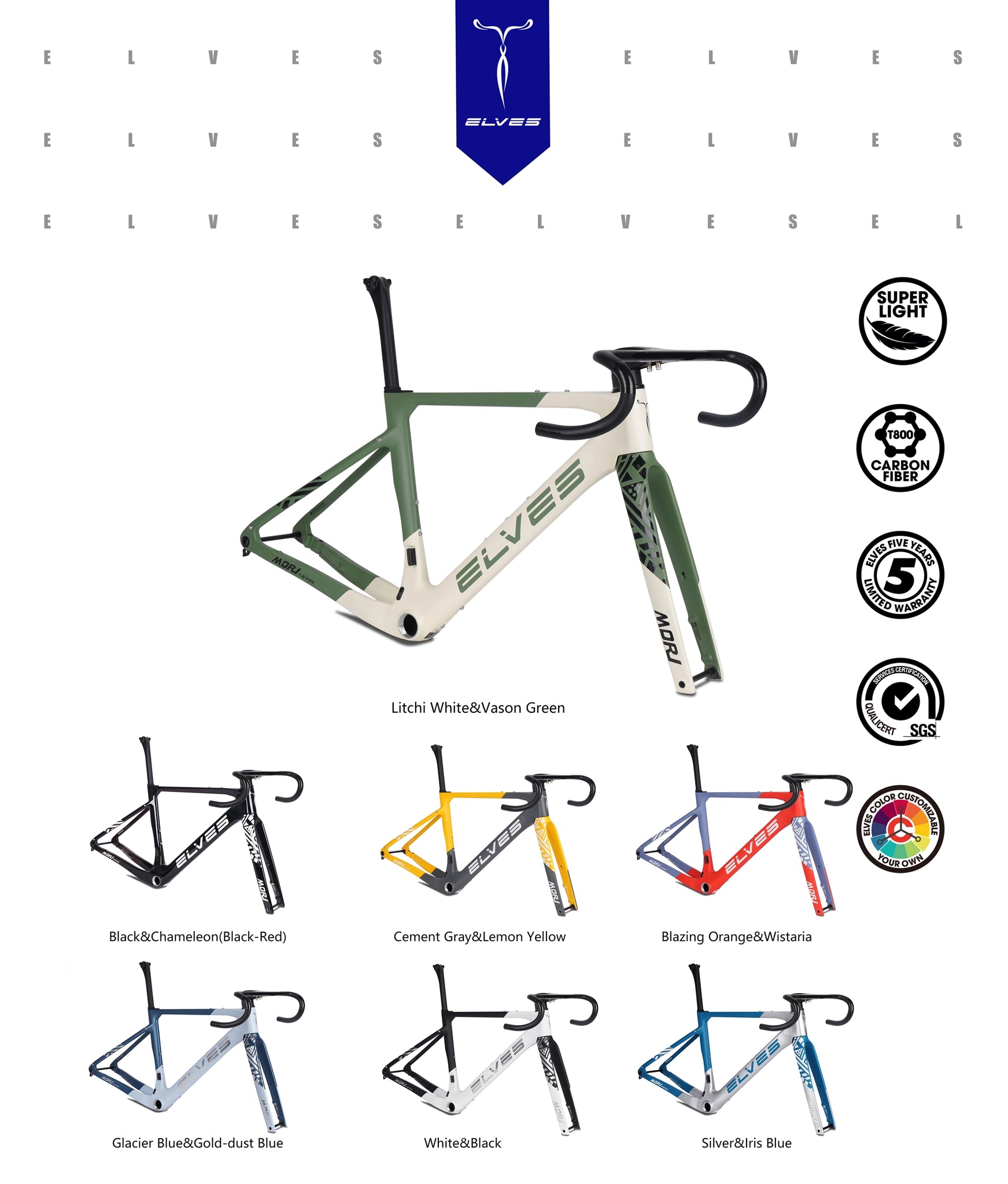

Choose from seven standard colors or opt for a custom paint finish to express your individuality
5-Year Frame Warranty, 2-Year Warranty on Handlebars & Wheelsets, 1-Year Saddle Warranty

Affordable Performance Without Compromise

At SZEO, we challenge industry norms by offering high-performance, premium-quality frames and bikes at an accessible price point. With the Mori Gravel, you no longer have to choose between quality and affordability—experience both.

Ride beyond limits. Ride SZEO Mori Gravel.
