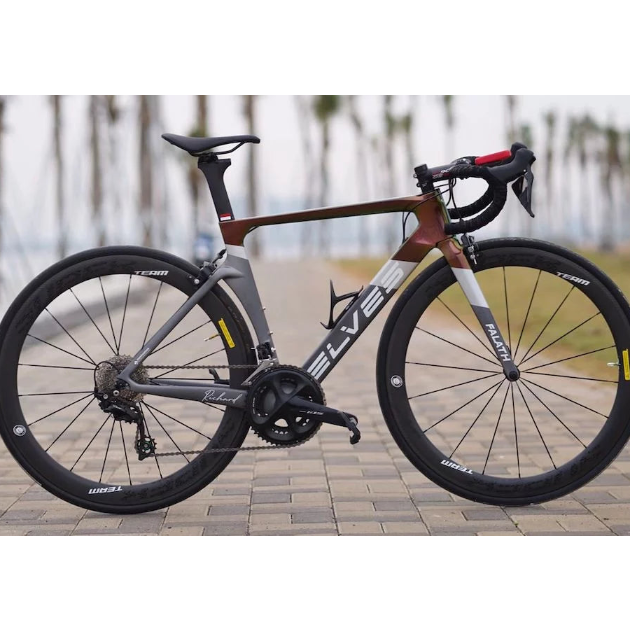

Elves Falath PRO 2022 Frameset (Rim Brake)
Delivery 3 - 4 Weeks (Frames painted from Raw)
Undoubtedly, Falath Frame Is One of The Best-Selling Frames in Elves Family, Not Only the Perfect Aero Form, But One That Also Has a Higher Stiffness and A Balanced Geometry.
Our Engineer Built the Falath Frame Use of T800 Carbon Fiber and T1000 Carbon Fiber in Some Important Areas Like the Head Tube and Bottom Bracket to Increase the Overall Stiffness, And the Scientific Layup Schedules Ensure Every Tube and Every Trailing Edge Have Perfect Lightweight and Stiff.
Aero Form Framesets Advanced Drag Reduction Features Minimize Drag for Less Effort and More Speed. Super-Stiff and Lightning Fast They Offer a True Performance Advantage for That Solo Breakaway or Chaotic Final Sprint.
Falath Is Selected by Some International Teams So We Can Get Many Professional Rider Suggestions Constantly and Enabled Us to Implement a Performance Road Geometry and A Perfect Control! Based On Their Suggestion We Have Modified The Falath Moulding To Get A New Perfect Aero Frame—2022 Falath Pro! More Perfect Aero Form and We Modified the Headtube Structure to Get Full Integrated Cable Routing.
Elves Has Always Been Synonymous With Fabulous Frame Finishes,And The Trend Will Continue On Falath Pro Frame, Falath Pro Will Be Available In Five Colors! All Of Them Look Great and Beautiful! Elves Products Has Been Sold All Over the World, We Have to Prepare More Fun Colorway for Different Customers. Want More Colorway Options? Elves Can Offer Custom Paint Service for Our Riders. Additionally, The All-Black Colorway Is Always the Lightest One and It Shaved About 110g Over Another Colorway.
Aero Road Bikes Are The Fastest Option Out There In The Majority Of Circumstances And You Don’T Have To Be A Pro To Benefit, Especially If You’Re A Rider Who Places A Lot Of Significance On Riding Fast. After All, For A Lot of People, Riding Fast Is Fun. If That’s You, Then We Think Falath Pro Frame Must Be the Best Collections to You.
FRAME
- FULL-CARBON(TOARY T800 + T1000 CABON FIBER)
- GEOMETRY:PRO
- SEAT CLAMP:INTERATED
- WEIGHT: 1160g(SIZE 46)
- HEADSET:1-1/2” LOWER,1-1/2” UPPER
- BRAKE:DIRECT MOUNT TYPE
- BOTTOM BRACKET:BB86
- ELECTRIC DRIVETRAIN:DI2&E-TAP COMPATIBLE
- EPS MOLDING TECHNOLOGY
- MAX TYRE SIZE: 700CX28C
- INTEGRATED CABLE ROUTING
SEAT POST
- LENGTH:350mm
- WEIGHT:258g
- SINGLE BOLT PIVOT PRECISE ADJUSTMENT
- SEATPOST:FULL-CARBON
- SADDLE CLAMP: 7X7mm SADDLE RAIL CLAMP (7X10mm CLAMP FOR CARBON RAIL INCLUDED)
FORK
- FULL-CARBON FORK
- WEIGHT:398g
- OFFSET:45mm
- BRAKE:DIRECT MOUNT TYPE
- STEER TUBE LENGTH:300mm
COLORS
- BABY ORGANGE&MATT CANAL BLUE
- CEMENT GRAY&CLOUD BLUE
- GLOSSY SILVER&MATT BLACK
- SAKURA PINK&FLAMINGO PINK
- WHITE&NEBULA CHAMELEON
ACCESSORIES
- BB86,CERAMIC BEARINGS BB
- ELVES HEADSET
- REAR DERAILLEUR HANGER X2
CERTIFICATION
BOTH EN 14766 AND ISO 4210-6:2014
TORQUE VALUES
- RECOMMENDED TORQUE VALUES
- SADDLE RAIL BOLTS:12Nm
- INTEGRATED SEATCLAMP:10-12Nm
- STEM (STEERER):6Nm
- STEM (HANDLEBAR):6Nm
- FRONT DERAILLEUR HANGER:3Nm
- REAR DERAILLEUR HANGER:2.5Nm
- WATER BOTTLE CAGE BOLTS:3Nm
FAQ
Q. What warranty do I get with my Elves Bike?
A. All ELVES framesets and associated parts, except consumable parts such as hangers, cable stops etc. are covered under our limited 5 year warranty program. Your warranty period begins from the time of purchase. Please see our website for full details.
Q. Can I get a fully built Elves Bike?
A. Once you have chosen and purchased your frame, Trevscycleshop can build your bike to your specification. We use Shimano or SRAM components utilising Di2 or mechanical group sets plus a wide range of other components to deliver your dream bike. Just email Trevor (trevscycleshop@gmail.com) for further details.
Q. Can I choose my own colours?
A. Yes, Elves bikes can help you to design and then paint your bike to your own specifications. (Note, extra cost will apply. Please see the website for the latest prices under “Custom Paint”). Please email Trevor (trevscycleshop@gmail.com) for more information.
Q. How long does it take to receive my frame after I order it?
A. All frames are manufactured to order. On average it takes 3-4 weeks including shipping to receive your frame. Custom spraying takes about one week longer but is well the wait.
Q: Are the frames open source mould?
A: Elves frames are not open source. They are designed by Elves’ own R&D department and manufactured in our own high quality factory.
Q. Can I talk to a NZ representative?
A. Yes, you can email Trevor (trevscycleshop@gmail.com) who is based in Auckland.
Q. Where are Elves bikes designed and manufactured?
A. Elves frames are designed in Taiwan by our R&D (Research and Development) team. Frames are manufactured, like most bike manufacturers, in China but by our very own factory using our specialist our one piece layering process. Our graphics and paint schemes are designed in conjunction with the awesome Hong Kong design house DSD (Diamond Sports Design) who have worked with many top international sports brands.
Q. Are Elves frames of good a quality?
A. All Of Elves Carbon Road Frames meet the EN 14766 And ISO 4210-6:2014 High-Quality Standards and Provide Durability and Value in Terms of Quality and Price. Along with this, certain frames now conform to UCI (Union Cycliste Internationale) standards and can be used to race in international competition.
