ELVES Falath PRO Frameset (DISC BRAKE)

  • $1,599.00
Or 10 interest free payments from $159.90 with What's this?


Delivery 3 - 4 Weeks (Frames painted from Raw)

Falath frame is one of the best-selling frames in Elves family, not only the perfect Aero form, but one that also has a higher stiffness and a balanced geometry.

Our engineer built the Falath frame use of T800 carbon fiber and T1000 carbon fiber in some important areas like the head tube and bottom bracket to increase the overall stiffness, and the scientific layup schedules ensure every tube and every trailing edge have perfect lightweight and stiff; Falath is selected by some international teams so we can get many professional rider suggestions constantly and enabled us to implement a performance road geometry and a perfect control!

Elves engineers have an innovative design to build Falath Disc frame based on Falath, and they designed new stronger fork fit it, it looks more muscular! We called the new disc frame Falath-D.

The estimated delivery time about 4 weeks, depending on the custom finishing required.

Available Colours:

  • Glossy Black+Matte Black
  • Highlands Green + Sea Mist Green

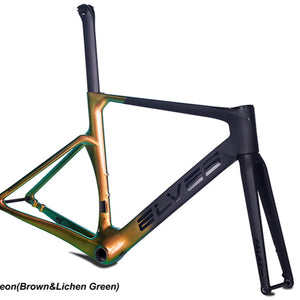

  • Chameleon (Brown & Lichen Green) + Matte Lemon Yellow

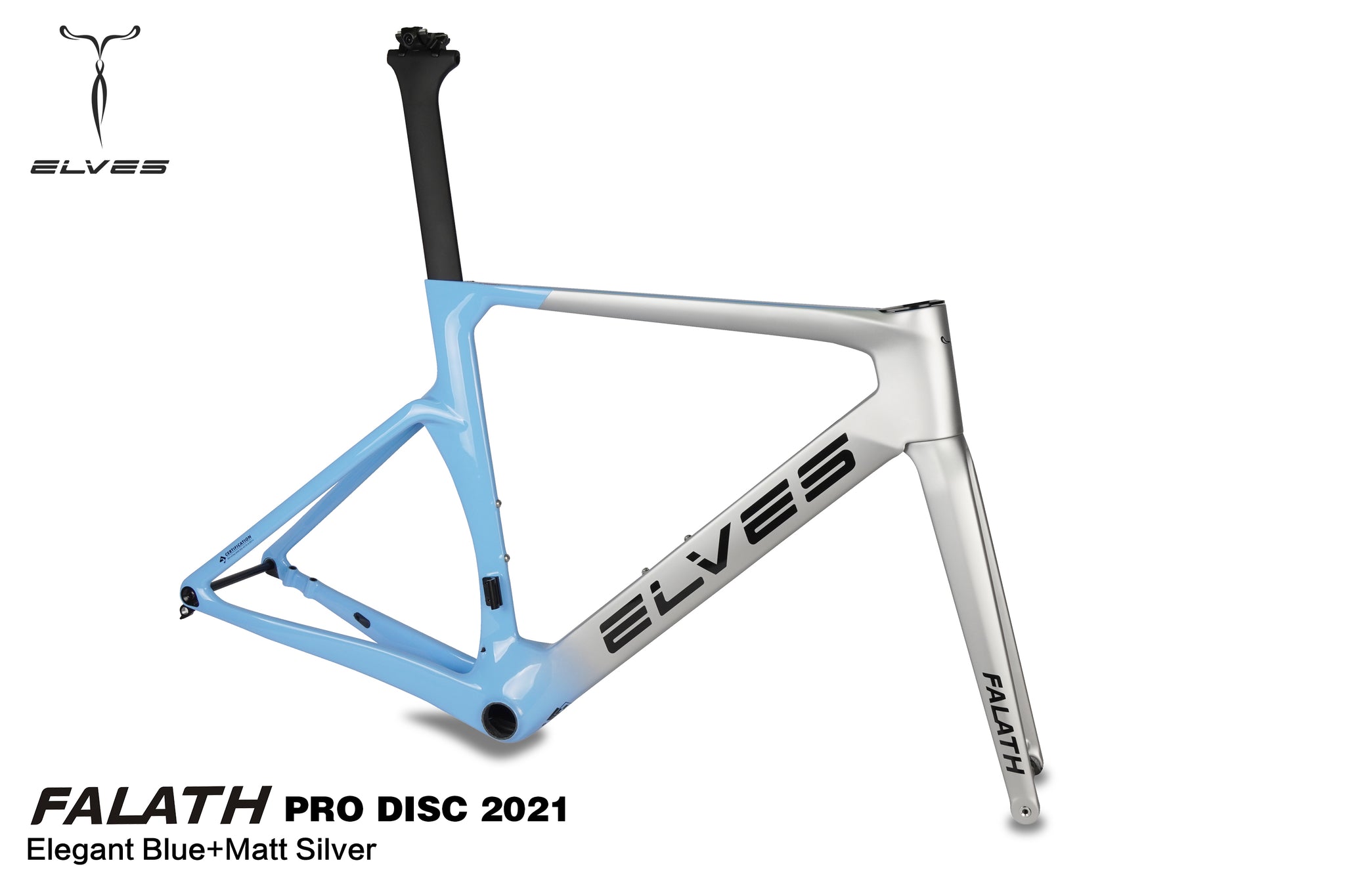

  • Elegant Blue + Matte Silver
  • Chameleon (Jewelry Blue) + Matte Blazing Orange

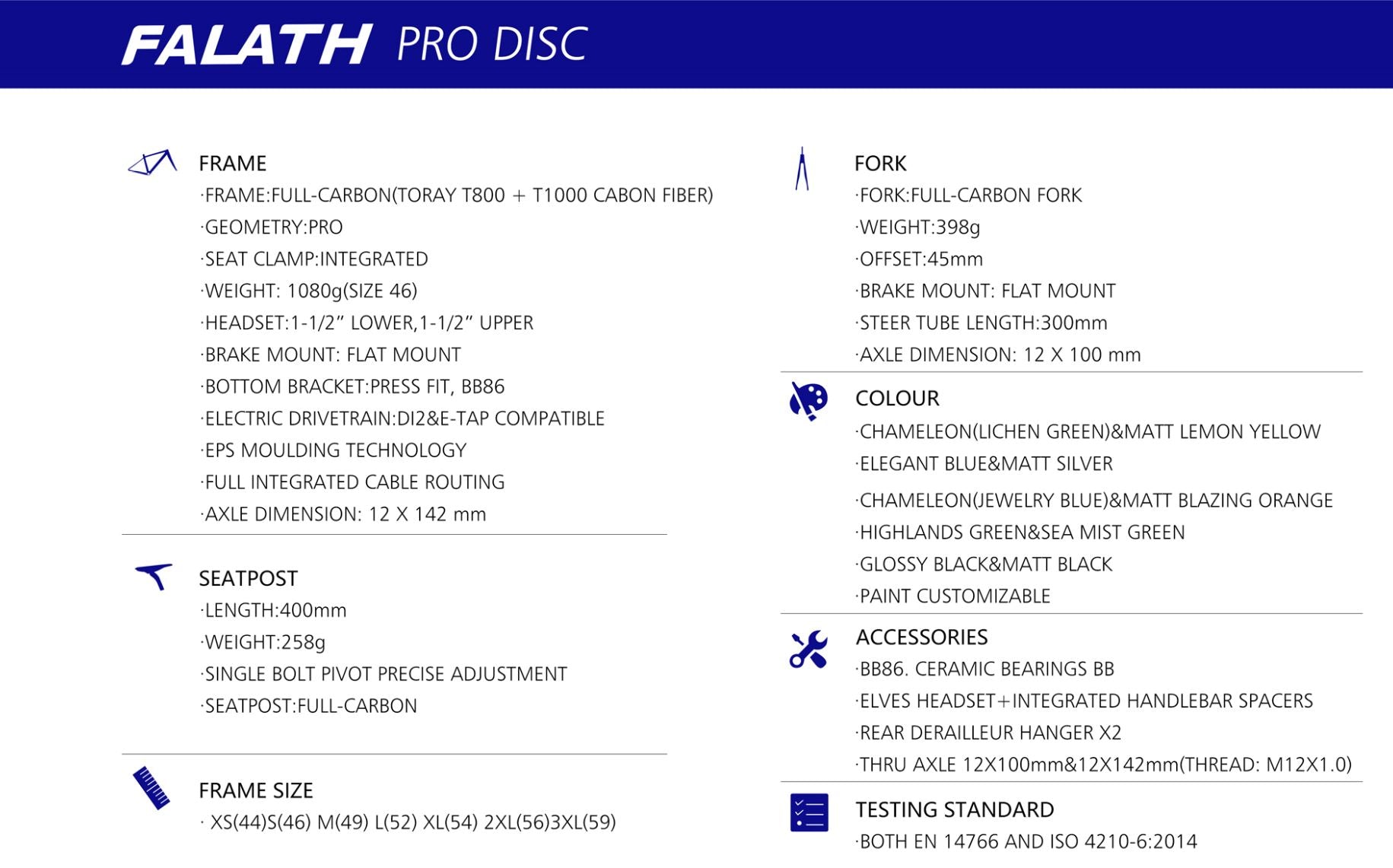

FRAME:

FULL-CARBON (TORAY T800 & T1000 CARBON FIBER)
GEOMETRY: PRO
SEAT CLAMP: INTEGRATED
WEIGHT: 1080G (SIZE 46)
HEADSET : 1-1/2" LOWER,1-1/2" UPPER
BRAKE: FLAT MOUNT
BOTTOM BRACKET: Press fit BB86
ELECTRIC DRIVETRAIN: Di2 & E-TAP COMPATIBLE
EPS MOLDING TECHNOLOGY
FULL INTEGRATED CABLE ROUTING
AXLE DIMENSION 12x142mm


Fork:
FORK L FULL-CARBON FORK
WEIGHT: 398g
OFFSET: 45mm
BRAKE: FLAT MOUNT
STEER TUBE LENGTH: 300mm
AXLE DIMENSION 12x100mm

Seat Post:
LENGTH: 400mm
WEIGHT: 258g
SINGLE BOLE PIVOT PRECISE ADJUSTMENTS
SEATPOST: FULL-CARBON


Certification:
BOTH EN 14766 AND ISO 4210-6:2014


Accessories:
BB86, CERAMIC BEARINGS BB
ELVES HEADSET = INTEGRATED Handlebar spacers
REAR DERAILLEUR HANGER X2
Thru Axle 12x100mm & 12x142mm (Thread: M12x1.0)
