Elves Mori AeroX Carbon Gravel Disc Frame (Excludes Handle Bars)
Elves Mori AeroX Carbon Gravel Disc Frame (Excludes Handle Bars)
Elves Mori AeroX Carbon Gravel Disc Frame (Excludes Handle Bars)
Elves Mori AeroX Carbon Gravel Disc Frame (Excludes Handle Bars)
Elves Mori AeroX Carbon Gravel Disc Frame (Excludes Handle Bars)
Elves Mori AeroX Carbon Gravel Disc Frame (Excludes Handle Bars)
Elves Mori AeroX Carbon Gravel Disc Frame (Excludes Handle Bars)
Elves Mori AeroX Carbon Gravel Disc Frame (Excludes Handle Bars)
Elves Mori AeroX Carbon Gravel Disc Frame (Excludes Handle Bars)
Elves Mori AeroX Carbon Gravel Disc Frame (Excludes Handle Bars)
Elves Mori AeroX Carbon Gravel Disc Frame (Excludes Handle Bars)
Elves Mori AeroX Carbon Gravel Disc Frame (Excludes Handle Bars)
Elves Mori AeroX Carbon Gravel Disc Frame (Excludes Handle Bars)
Elves Mori AeroX Carbon Gravel Disc Frame (Excludes Handle Bars)
Elves Mori AeroX Carbon Gravel Disc Frame (Excludes Handle Bars)

Elves Mori AeroX Carbon Gravel Disc Frame (Excludes Handle Bars)

Delivery 5 - 8 Weeks (Frames painted from Raw)

NB - Handlebars Sold Separate

Mori Gravel - Specification Overview:

  • Frame material: Today T800 & T1000 Carbon Fibre - EPS Mounding Technology
  • Frame & size & weights:  46cm, 49cm, 52cm, 54cm, 56cm - Weight to be confirmed
  • Fork Weight: To be confirmed with an uncut steerer
  • Full internal cable routing
  • Max Tyre Clearance: 700c x 45mm & 650b x 50mm
  • Rotor Size: 140mm or 160m
  • Bottom Bracket: Supplied - Threaded T47 Senicx Ceramic in a choice of Shimano 24mm, SRAM DUB 28.99 or 30mm
  • Gear Mech Hanger: 2 x Supplied - UDH
  • Thru-axles: Supplied - 100mm (front) & 142mm (rear)
  • Seat post: Supplied - Choice or 12mm or  350mm in length  215g (+/-), two way adjustable clamp (7x7mm & 7x10mm clamps supplied)
  • Compatibility: Compatible with mechanical and electronic 10/11/12/13 speed groupsets inc Di2 & AXS
  • Certification: ISO & EN standards certified

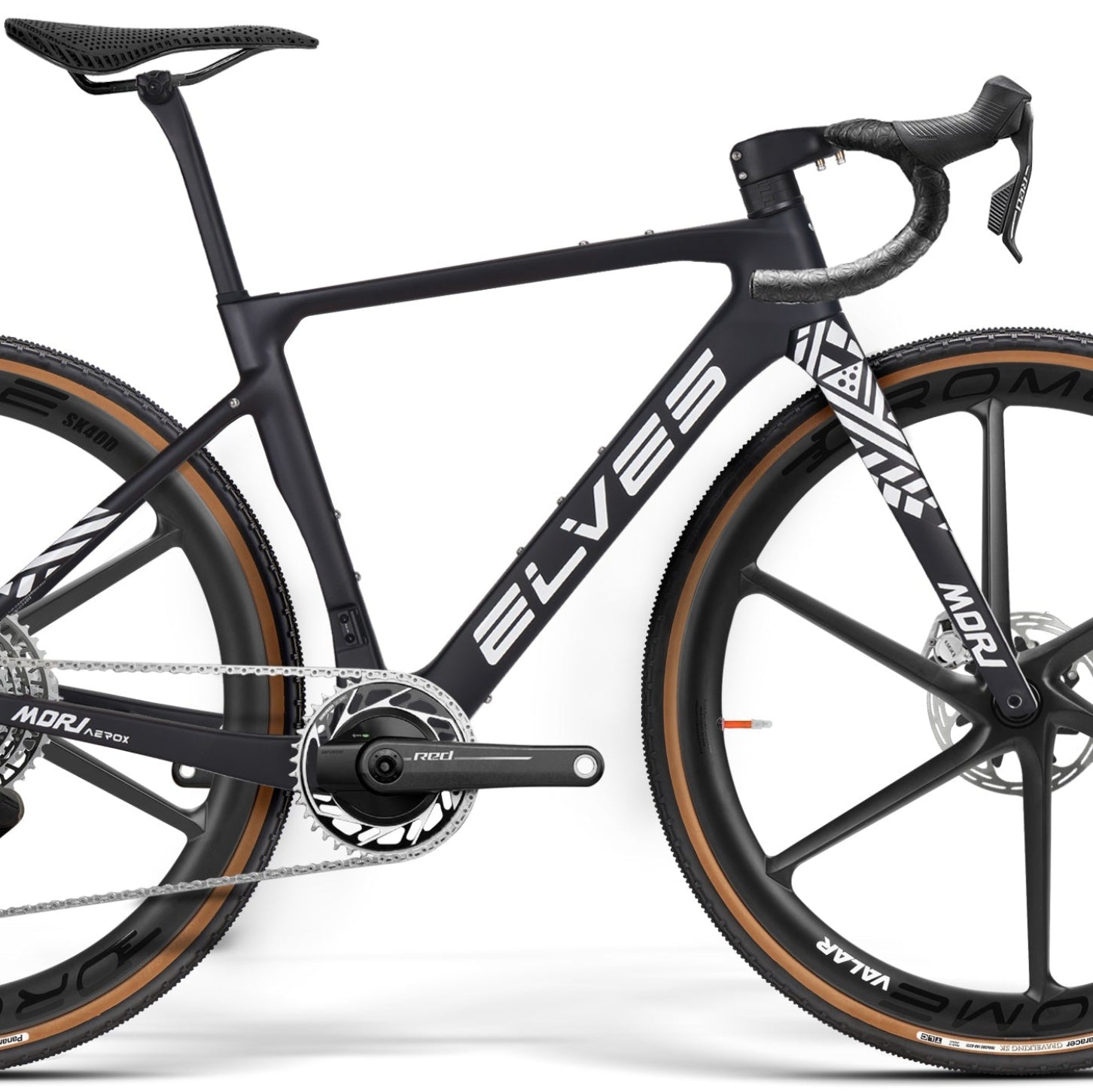

THE MORI AEROX – SPEED WITHOUT LIMITS

The Ultimate Aero Gravel Frame - Our research and development team have leveraged decades of aero road bike expertise, to create something truly extraordinary. Our state-of-the-art aero gravel frame has been meticulously engineered for race-winning speed, exceptional agility, and unmatched versatility across every terrain. The Mori Aerox disc frame incorporates many of the advanced features of the Elves Falath Pro, our renowned aero frame, delivering exceptional aerodynamics, handling and stiffness, ensuring optimal performance and control for the most demanding gravel courses.


Setting a New Standard in Gravel Performance – Elves Bikes have set a new benchmark in gravel bike racing by designing and manufacturing a durable, lightweight, performance-focused frame crafted from premium Toray Japanese carbon fibre T800-T1000. This cutting-edge material ensures the optimal strength-to-weight balance, whilst the advanced geometry of the Mori Aerox delivers confident, precision handling and superior climbing capabilities.

Engineered to Win – Like the Falath Pro, which is built for speed, our design team have refined and optimised the geometry resulting in a lower head tube angle and adjusted fork trail for enhanced stability on rough terrain. We have extended the reach and wheelbase, positioning riders to tackle challenging gravel courses whilst maintaining speed and control. With tyre clearance of 45c for 700c wheels and 50c for 650b wheels, riders can customise their set-up for added comfort and performance during long races or days in the saddle.

Compliance & Race winning Performance – Compatible with mechanical and electronic 10/11/12/13 speed groupsets including Di2 & AXS, the aero-inspired design of the Mori Aerox incorporates additional carbon fibre reinforcement of the bottom bracket and headstock, ensuring precise and efficient power transfer exactly where it's required. Through dedicated research and development, our team has achieved a perfect balance of rigidity and flexibility. The rear stays are designed to absorb shocks and vibrations from uneven gravel terrain, delivering all-terrain capability.

UDH Hanger Compatibility - The Mori Aerox is precision-engineered to fit the SRAM’s Universal Derailleur Hanger standard that simplifies compatibility by replacing countless options industry-wide. Designed for SRAM's full mount drivechain line-up that includes SRAM RED and XPLR AXS groupsets whilst remaining fully adaptable to other derailleur brands. The UDH pivots to protect your derailleur from chain jams, absorbs impacts, enhances shifting, and ensures perfect alignment across all drivetrains.

Versatility, Control & Comfort – Designed alongside the Mori Aerox, and to ensure that we continue to support rider choice, our customers have the option to acquire either the Orome 7-degree or 17-degree flared drop bars. For those seeking precision and performance, our Orome 7-degree flared drop bar has been appropriately optimised for racing. Alternatively, the 17-degree flared drop bar provides enhanced stability, making it ideal for bikepacking adventures or endurance racing. To further elevate functionality, the Mori Aerox is equipped with integrated mounting points for a top bag, water bottle cages, and a rear rack, ensuring seamless transitions between racing and touring. The streamlined internal cable routing protects against dirt and debris, while enhancing durability and aerodynamic efficiency.

ELVES OROME Gravel Wheelsets
In conjunction with the launch of the Mori Aerox and to support rider requirements on gravel, we are delighted to launch our Orome TH36G wheelset. Crafted for performance and versatility, the TH36G features a 36mm rim depth, striking the ideal balance between aerodynamic efficiency, crosswind stability, and lightweight construction. With a 23mm internal width and 32mm external width, this wheelset is designed to accommodate larger tyres, enhancing traction, comfort, and overall ride quality and safety.  Our TH30D and TH50D also fits our MORI AeroX gravel frames(Internal width 22mm&extranal width 29mm)
Sizes & Accessories – The Mori Aerox is available in sizes 46, 49, 52, 54, and 56. To ensure the perfect fit, please consult our comprehensive geometry and sizing guides for detailed recommendations. Each purchase includes essential components to enhance your setup, including headset bearings, two gear mech hangers, 7mm x 7mm and 7mm x 10mm seat clamps, and a cable routing stem adapter for seamless installation of standard handlebars.

Additionally, we provide a choice of a Senicx ceramic T47 bottom bracket, fully compatible with your groupset, for optimised performance. To further refine our customers choice, we offer seatpost options with either a 12mm or 25mm setback, ensuring a personalised and comfortable setup for every rider.

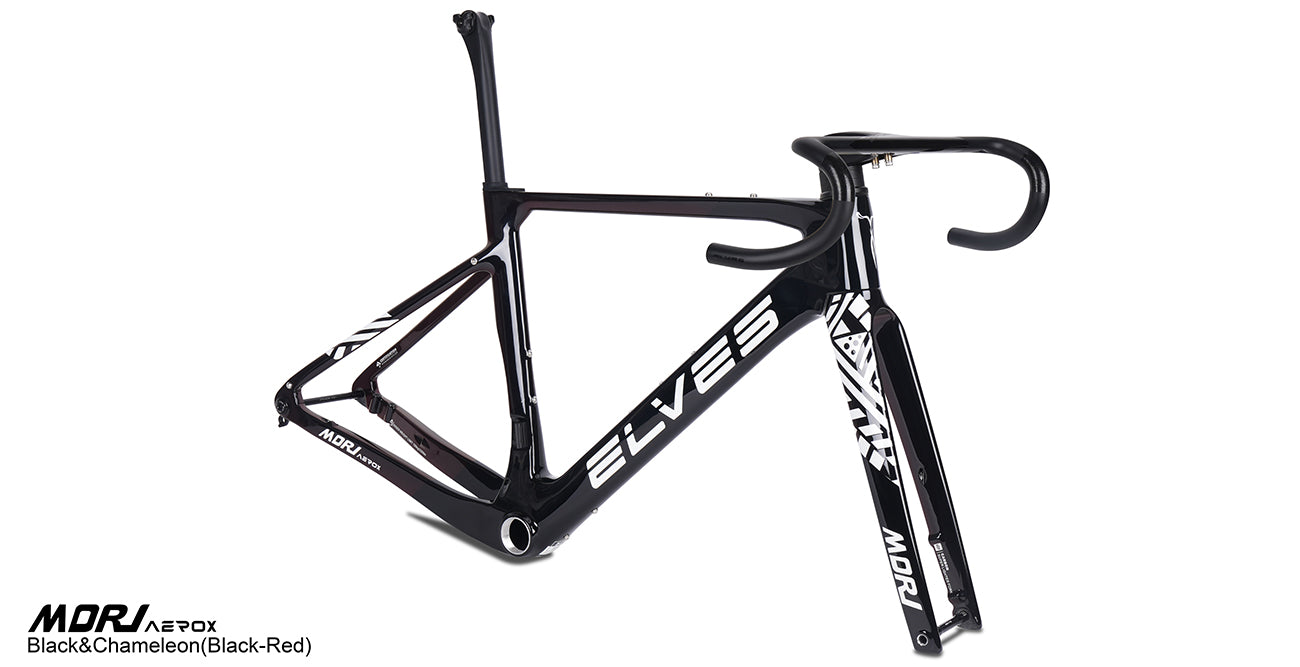

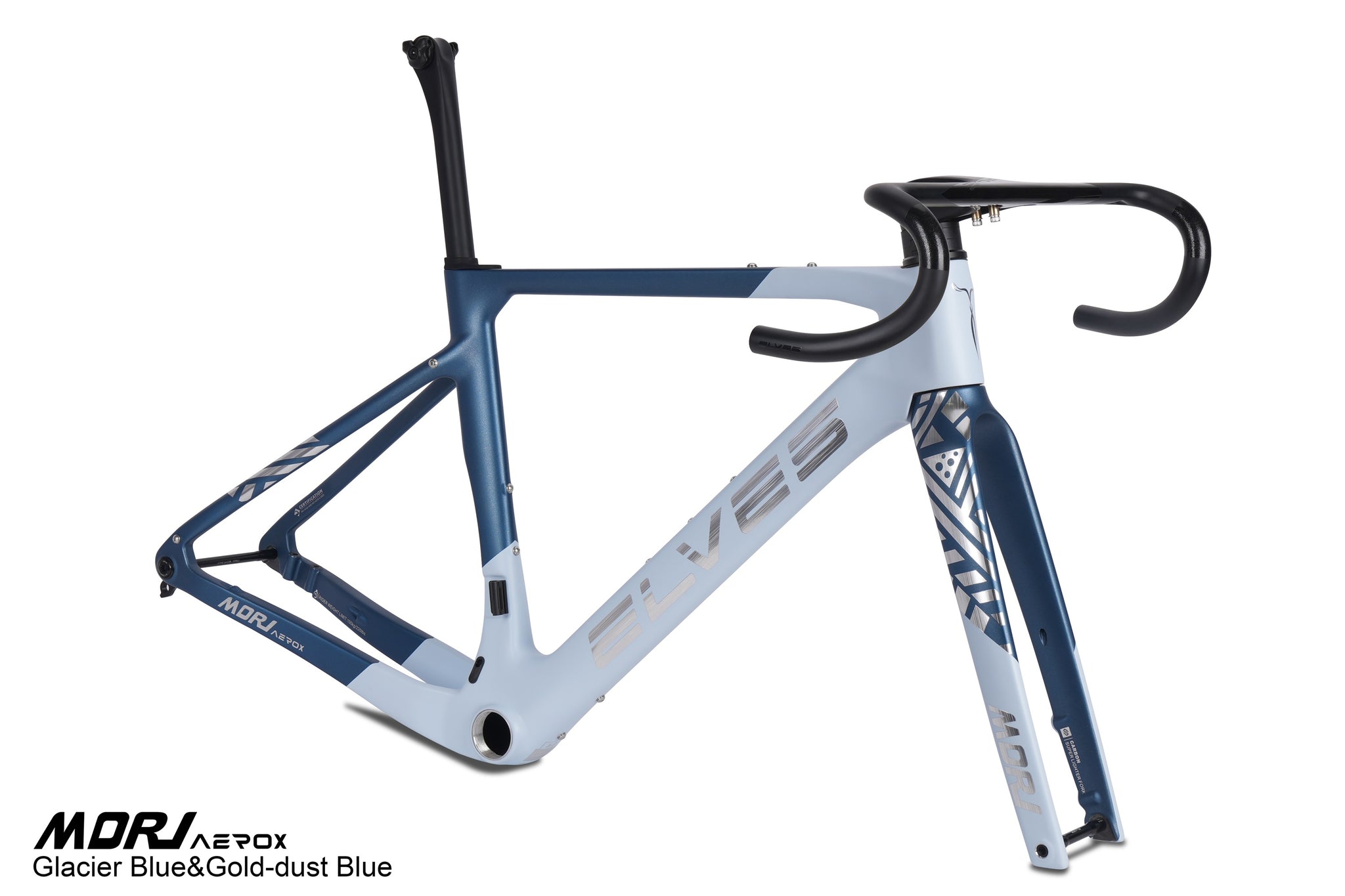

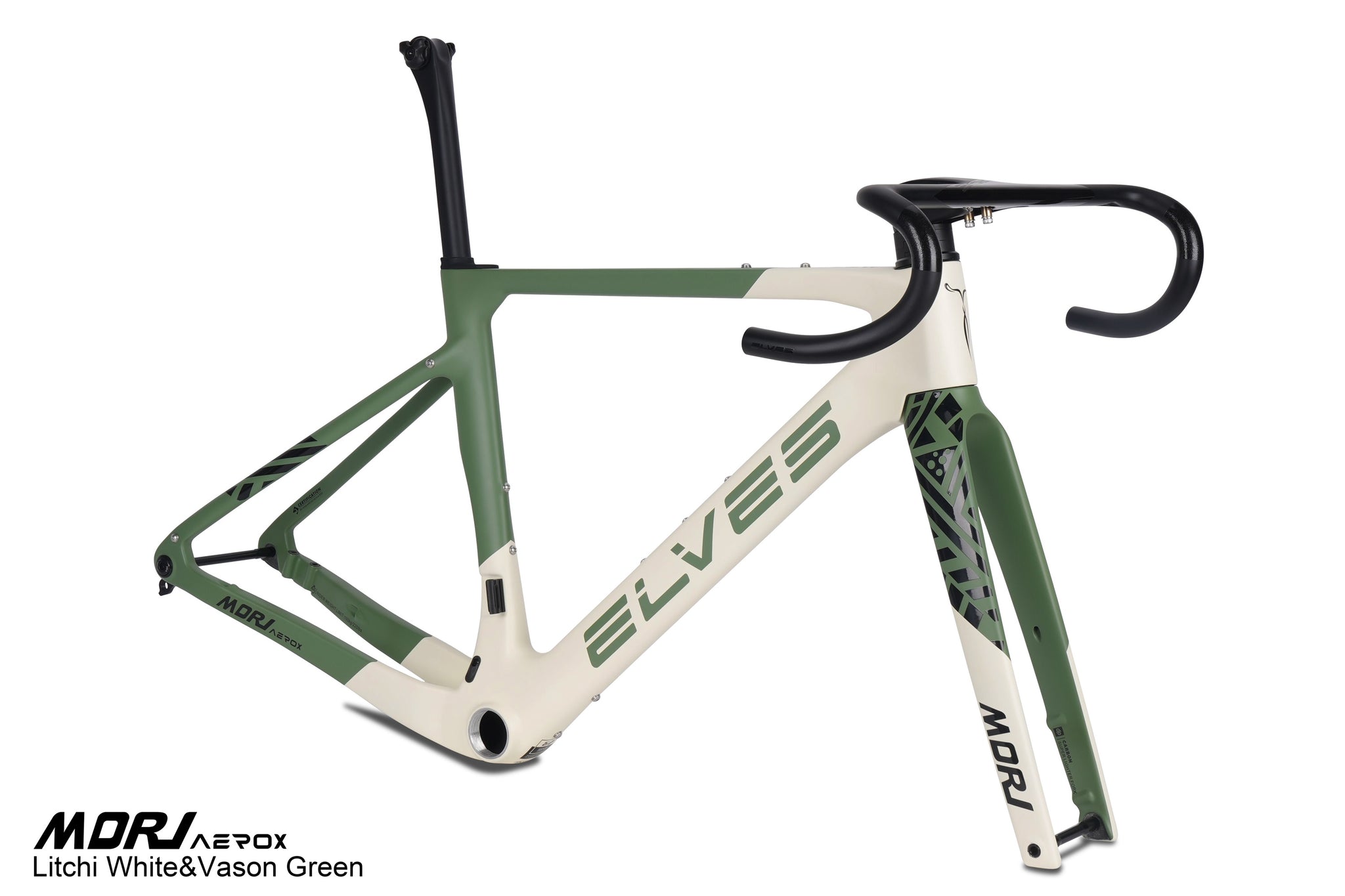

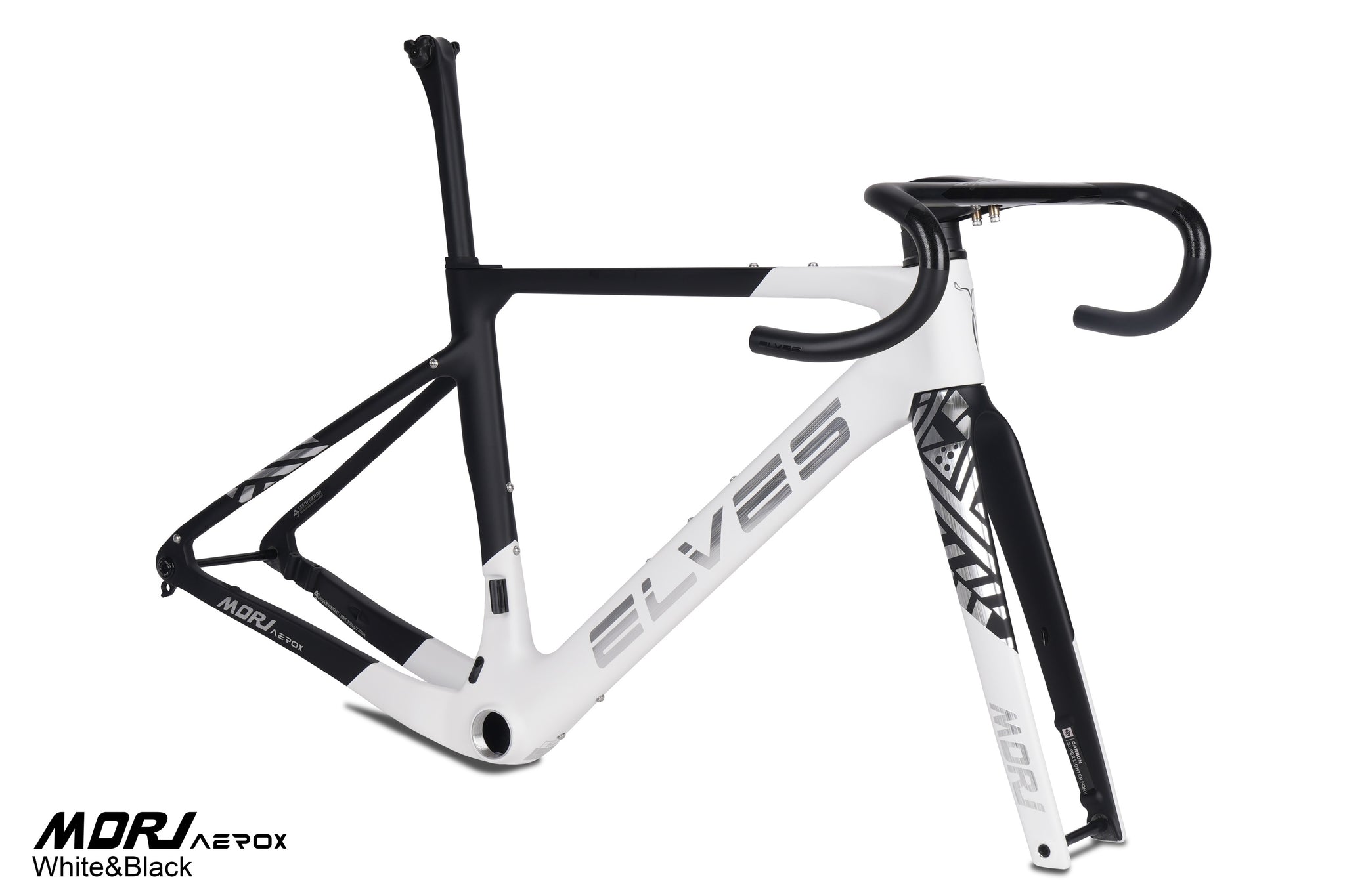

Custom Paint Finesse - Our ethos stems from a deep understanding of unmet customer needs, driving our strategic and inclusive decision to ensure that custom painted frames, celebrating individuality, remain highly accessible to all whilst offering seven standard colours to choose from.

Warranty - At Elves, your safety is our top priority, setting our brand apart by consistently exceeding industry standards. Like all our high-quality products, the Mori Aerox frame is backed by a 5-year global warranty, while our handlebars and wheelsets come with a 2-year warranty, and saddles are covered for one year.

Inspired by you and created by us, Elves Bikes are committed to producing exceptional quality frames and bikes at affordable prices globally. Our aim is to challenge the price point for performance and close the industry gap, ensuring that our riders are not making the tough choice between quality or cost, we assure our customers of both.
