*NEW* Elves Mori GTX Endurance Carbon Gravel Disc Frameset
The Elves Mori GTX is the more endurance-focused gravel frameset in the Mori range. Compared with the Mori AeroX, which is built around speed and gravel racing, the GTX is designed for longer rides, rougher roads, bikepacking, touring and all-road adventures.
It has a taller front end, a more relaxed riding position, clearance for up to 700c x 50mm tyres, integrated downtube storage, and mounting points on the frame and fork for carrying extra gear.
If you want a carbon gravel frameset that can still feel quick, but gives you more comfort and carrying capacity for big days out, the Mori GTX is the one to look at.
Want this frameset built into a complete gravel bike?
We can build the Mori GTX into a full custom gravel bike with wheels, handlebars, drivetrain, tyres, saddle and finishing kit selected to suit how you ride.
Set it up for fast gravel, long-distance riding, touring, bikepacking, or a bit of everything.
Frames are painted from raw, so custom builds usually take around 5–8 weeks, depending on paint timing and parts availability.
Get in touch before ordering and we can talk through the right setup for your build.
Ask us about a custom buildWhy choose the Mori GTX?
The Mori GTX is built for riders who want more from a gravel bike than just race-day speed.
It gives you the tyre clearance, storage, mounts and riding position for longer days in the saddle, while still using a full carbon frame with modern gravel standards.
- Endurance-focused carbon gravel frameset
- More relaxed riding position than the Mori AeroX
- Tyre clearance for up to 700c x 50mm
- Integrated downtube storage compartment
- Frame and fork mounting points for extra gear
- Choice of cargo fork or cleaner streamlined fork configuration
- Compatible with modern gravel suspension fork systems
- T47 threaded bottom bracket
- UDH rear derailleur hanger
- Internal cable routing
- Flat mount disc brake setup
- 27.2mm round seatpost, dropper post compatible
Built for long rides and mixed terrain
The GTX is a good option if your gravel riding includes long road sections, gravel roads, forest trails, rougher surfaces, loaded rides or bikepacking trips.
The 50mm tyre clearance gives you room to run wider rubber for more grip, comfort and control. The mounting points and downtube storage also make it easier to carry tools, spares, bottles, bags or extra gear without cluttering up the bike.
Mori GTX vs Mori AeroX
The Mori AeroX is the more race-focused aero gravel frameset. The Mori GTX is the more versatile endurance gravel option.
Choose the Mori AeroX if you want a faster, more aggressive gravel race setup. Choose the Mori GTX if you want more comfort, more clearance, more carrying options and a bike that can handle longer rides or rougher terrain.
Key specifications
| Frame material | Full carbon, Toray T800 / T1000 |
|---|---|
| Frame sizes | 49cm, 52cm, 54cm, 56cm, 59cm |
| Tyre clearance | Up to 700c x 50mm |
| Bottom bracket | T47 threaded |
| Bottom bracket options | T47-24R Shimano, T47-29R SRAM DUB, T47-30R Rotor / 30mm |
| Brake type | Flat mount disc |
| Rotor size | 140mm or 160mm |
| Rear hanger | UDH |
| Seatpost | 27.2mm round carbon seatpost, 15mm offset, dropper post compatible |
| Seatpost length | 400mm |
| Rear axle | 142mm thru axle |
| Front axle | 100mm thru axle |
| Cable routing | Internal cable routing |
| Drivetrain compatibility | Mechanical and electronic road / gravel groupsets, including Di2, AXS, UDH AXS and XPLR |
| Max 1x chainring size | 48T |
| Certification | EN 14766 and ISO 4210-6:2023 |
Frame weights
| 49cm | 922g |
|---|---|
| 52cm | 925g |
| 54cm | 970g |
| 56cm | 993g |
| 59cm | 1040g |
Frame weights are based on unpainted frames without metal parts and may vary slightly.
Frame weights
The Mori GTX frame weights vary by size. Elves lists these as unpainted frame weights, without metal parts, with a tolerance of +/- 15g.
49cm — 922g
52cm — 925g
54cm — 970g
56cm — 993g
59cm — 1040g
Fork weight — 456g, without thru axle
Seatpost weight — 170g
Paint finish will add weight:
Single colour paint — approx. 80g
Two-tone paint — approx. 120g
Three-tone paint — approx. 180g
Actual finished frame weight may vary depending on paint finish, size, hardware and final build specification.
What’s included
- Elves Mori GTX carbon frameset
- Fork option selected: Cargo Fork with luggage mounts or Sport Fork without luggage mounts
- Carbon seatpost and clamp
- 7x7mm and 7x10mm saddle rail clamps
- Elves headset
- Integrated handlebar spacers — 3 x 10mm
- Integrated in-frame storage compartment within the downtube
- Compression plug
- T47 bottom bracket option — Shimano 24mm, SRAM DUB 28.99mm or Rotor 30mm
- Front and rear thru axles
- Cable routing adapter spacer for regular stem
- Front derailleur mounting hole cover
- Garmin mount when purchased with compatible Elves handlebars
Note: Handlebars are sold separately. The Mori GTX is compatible with Elves AeroGX bars and can also be set up with a regular bar and stem using the supplied adapter. he Garmin mount is only included when purchased with compatible Elves handlebars.
Available colours

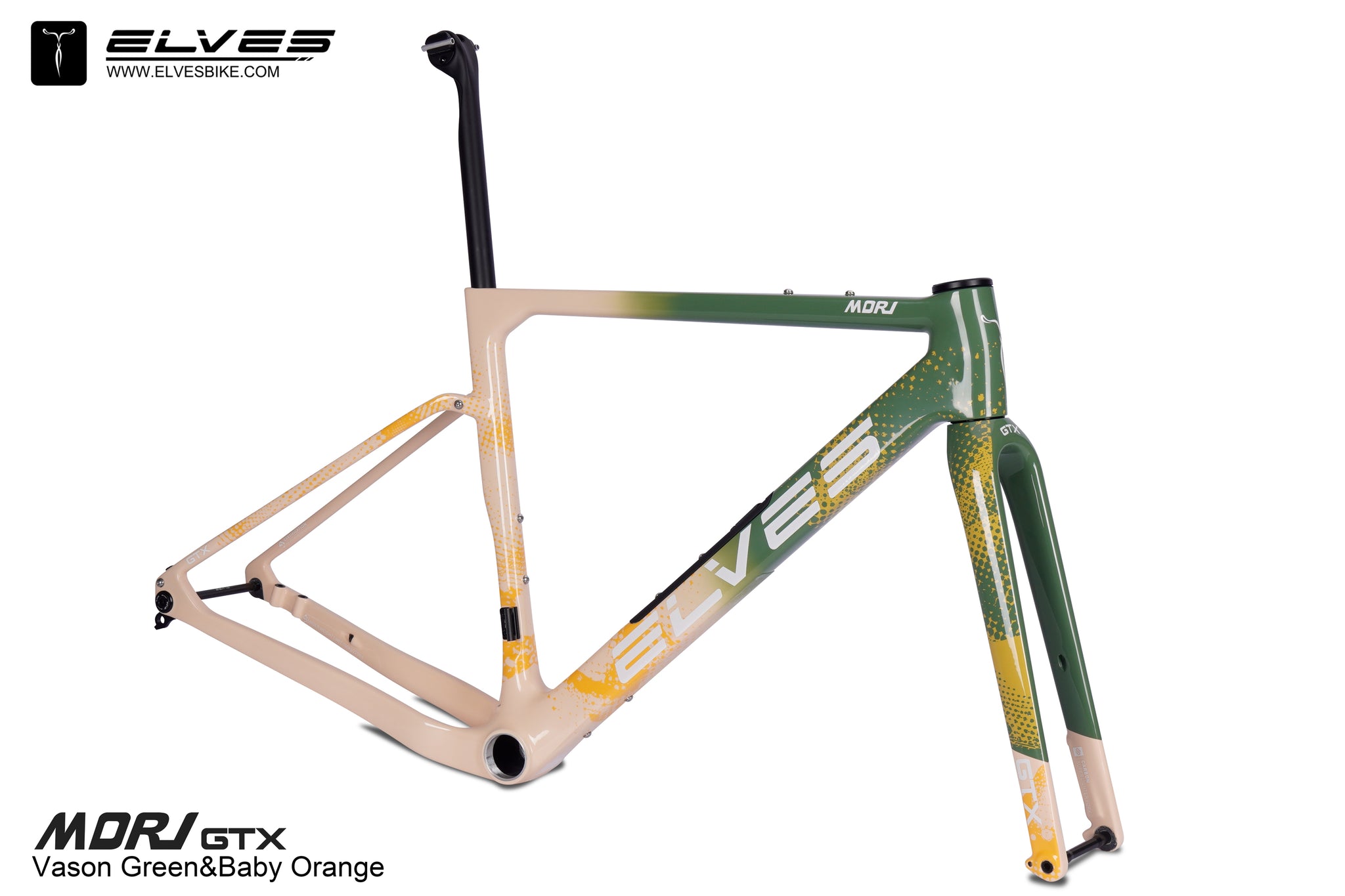

- Vason Green & Baby Orange

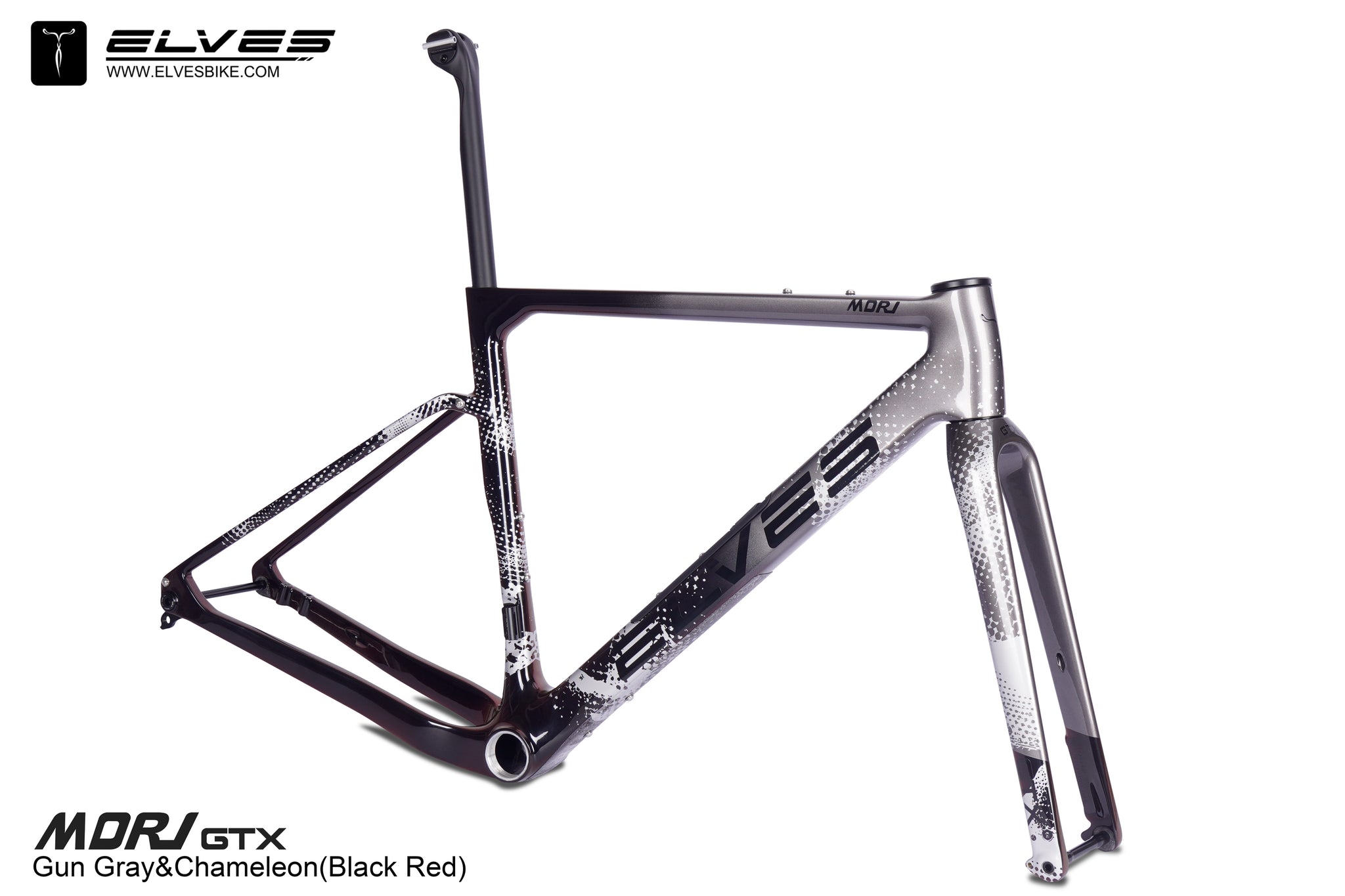

- Gun Grey & Chameleon Red/Black

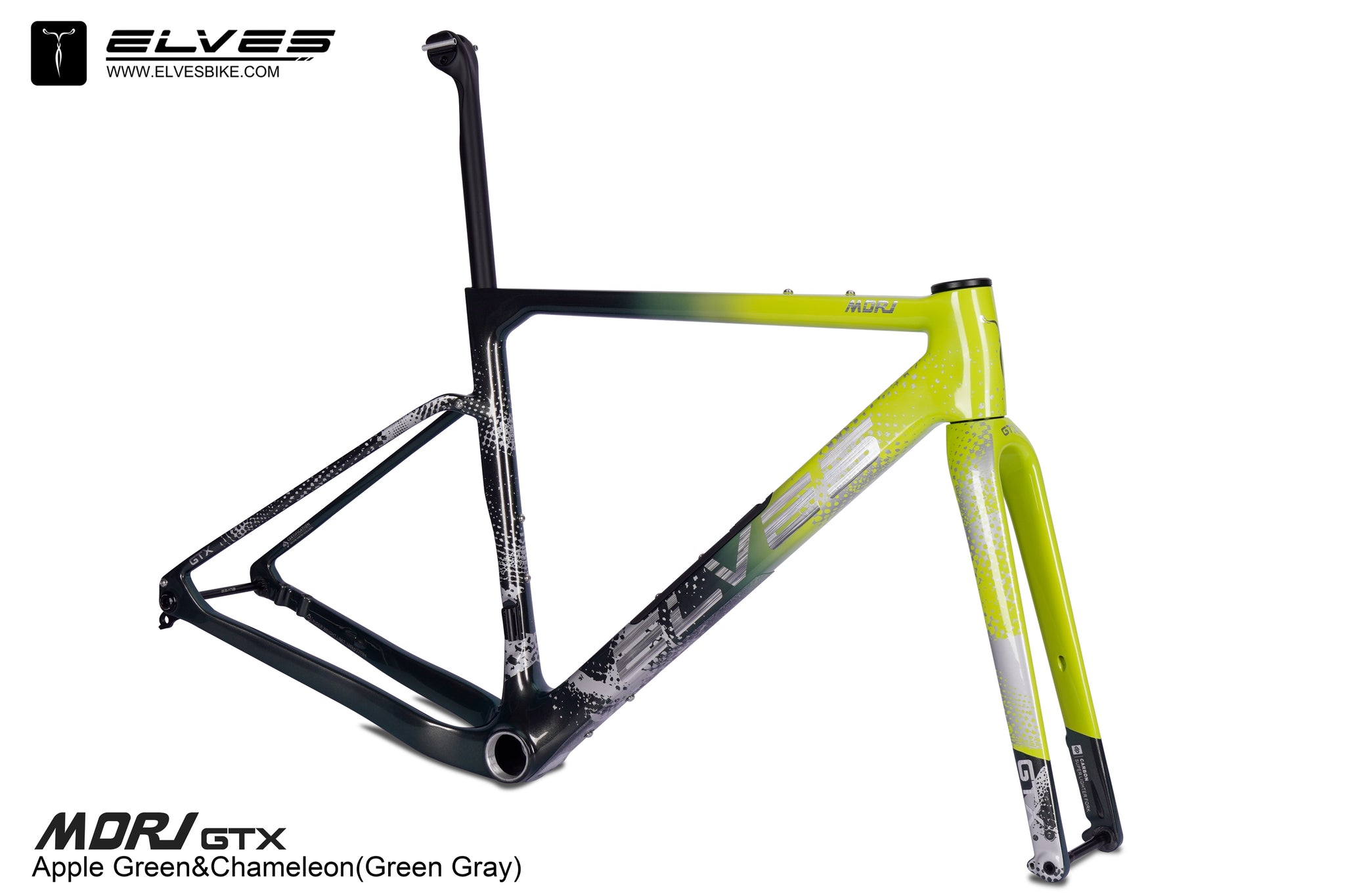

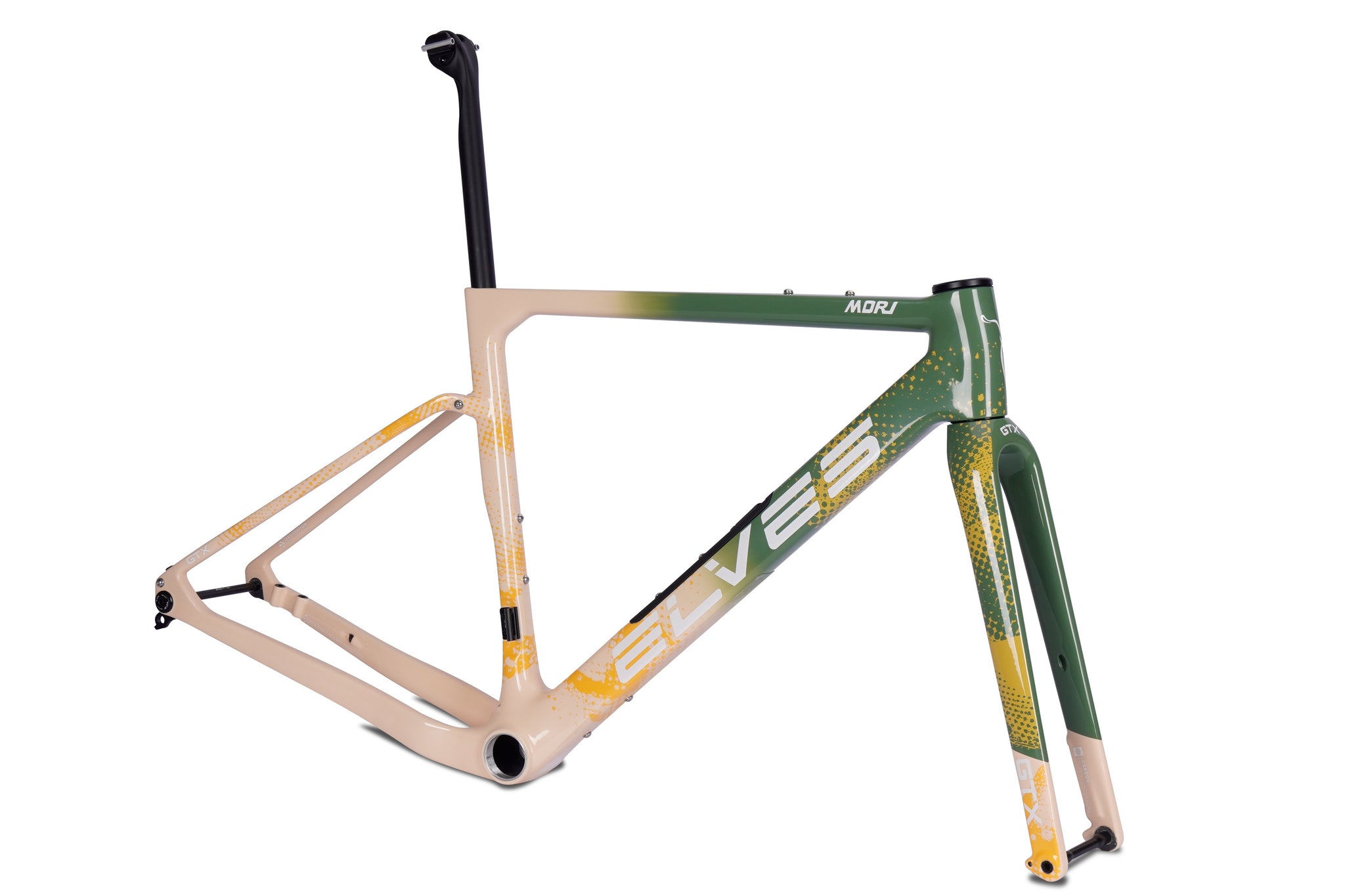

- Apple Green & Chameleon Green/Grey

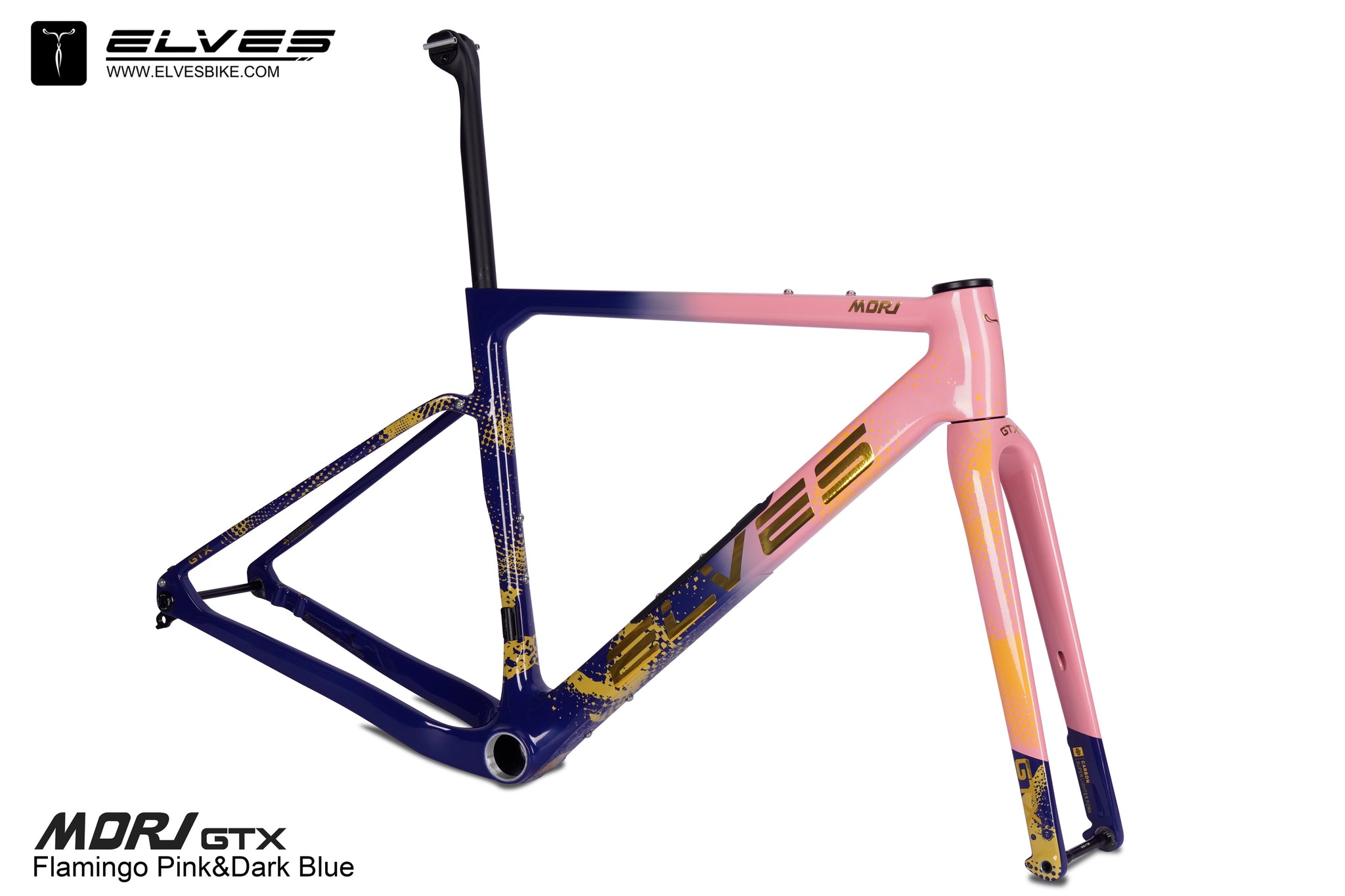

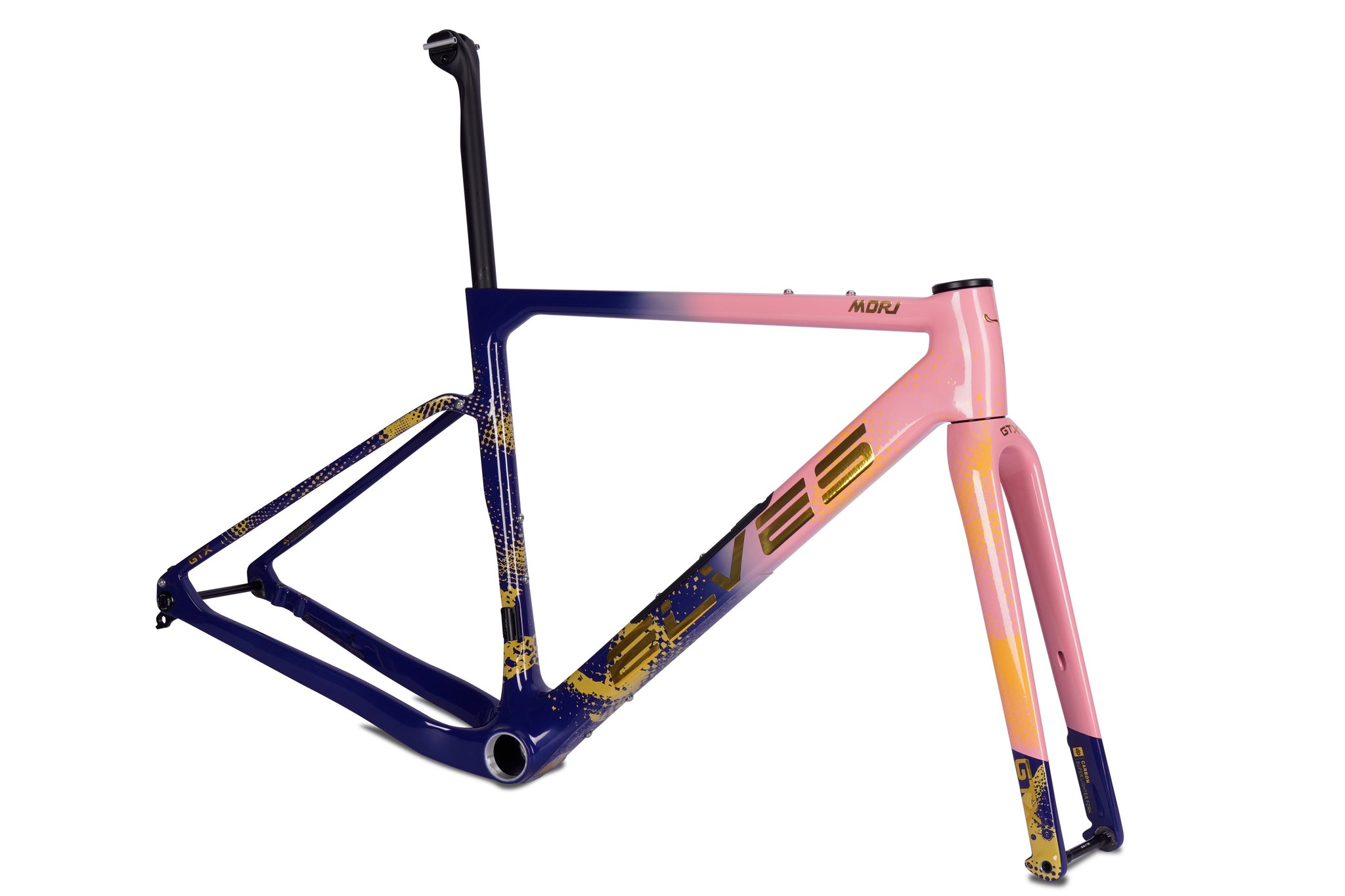

- Flamingo Pink & Dark Blue

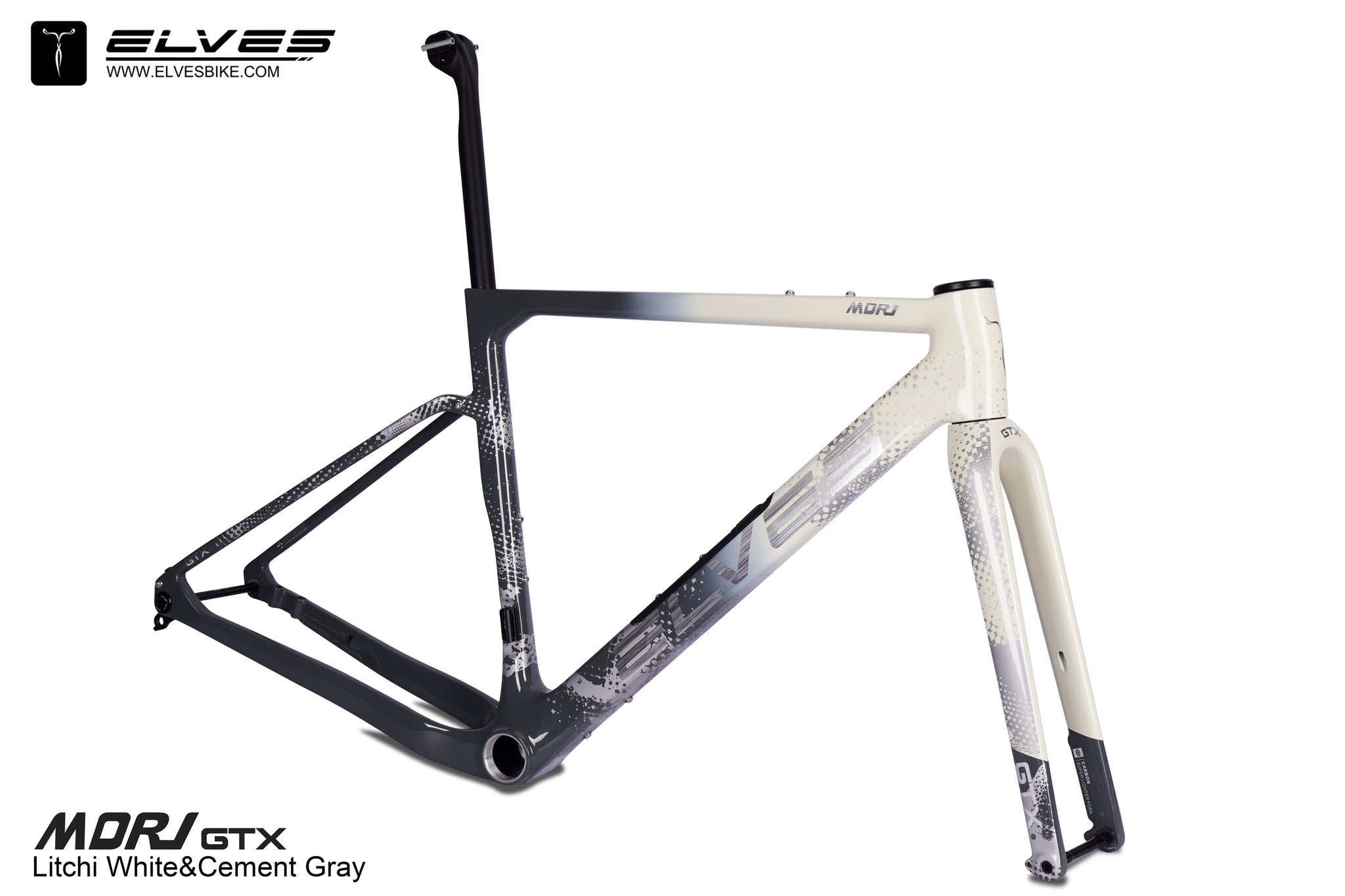

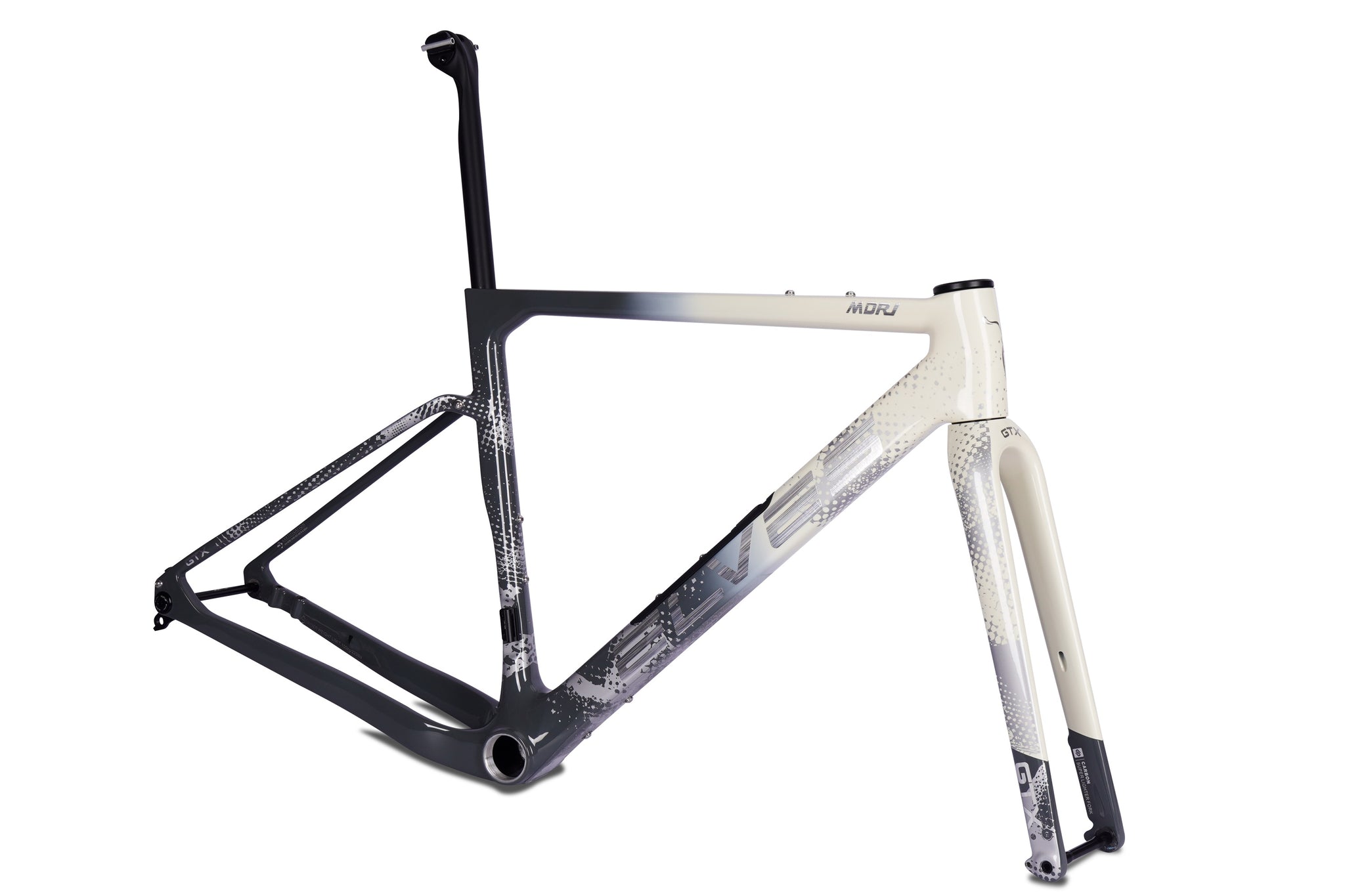

- Litchi White & Cement Grey

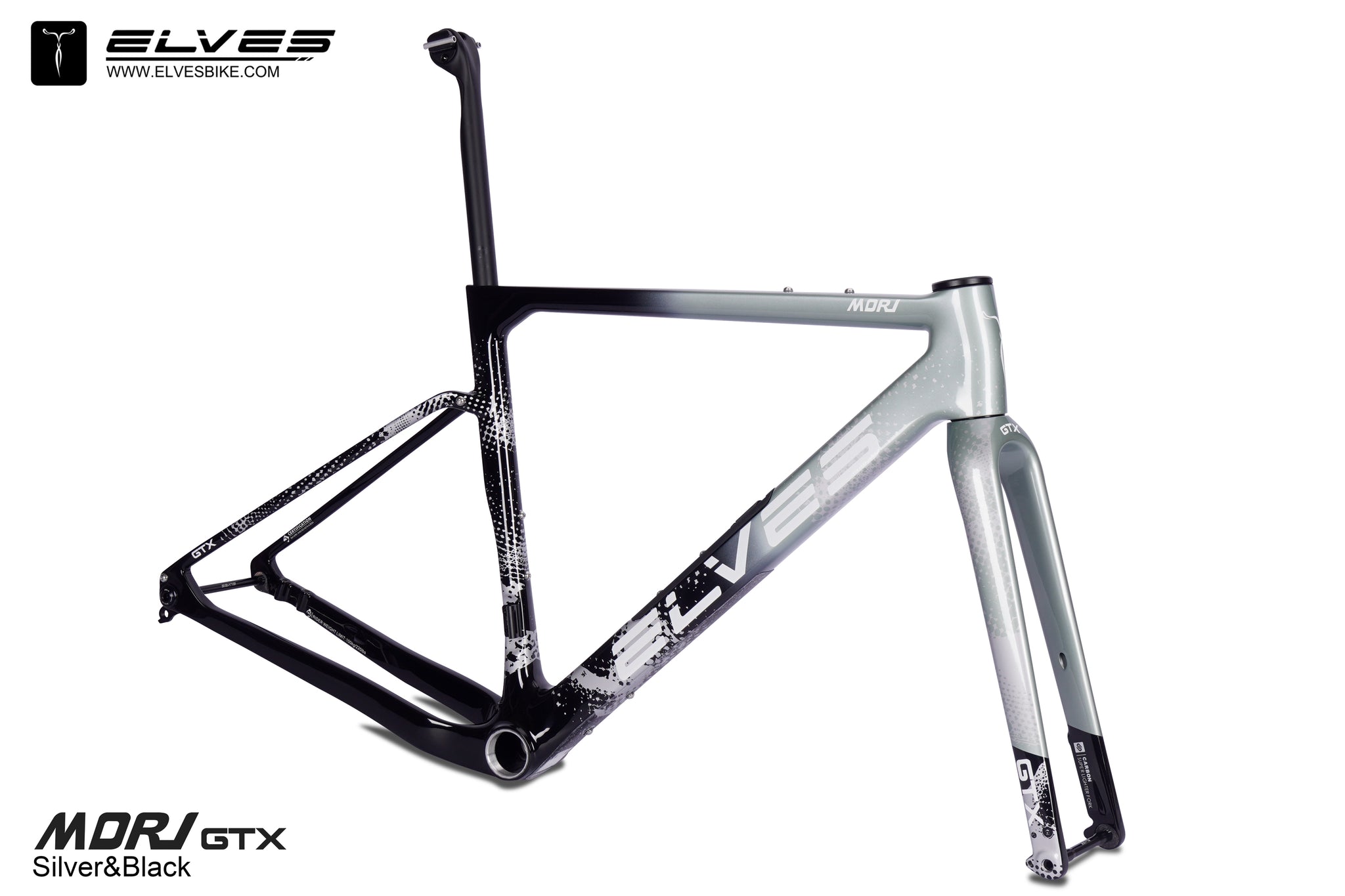

- Brilliant Silver & Black

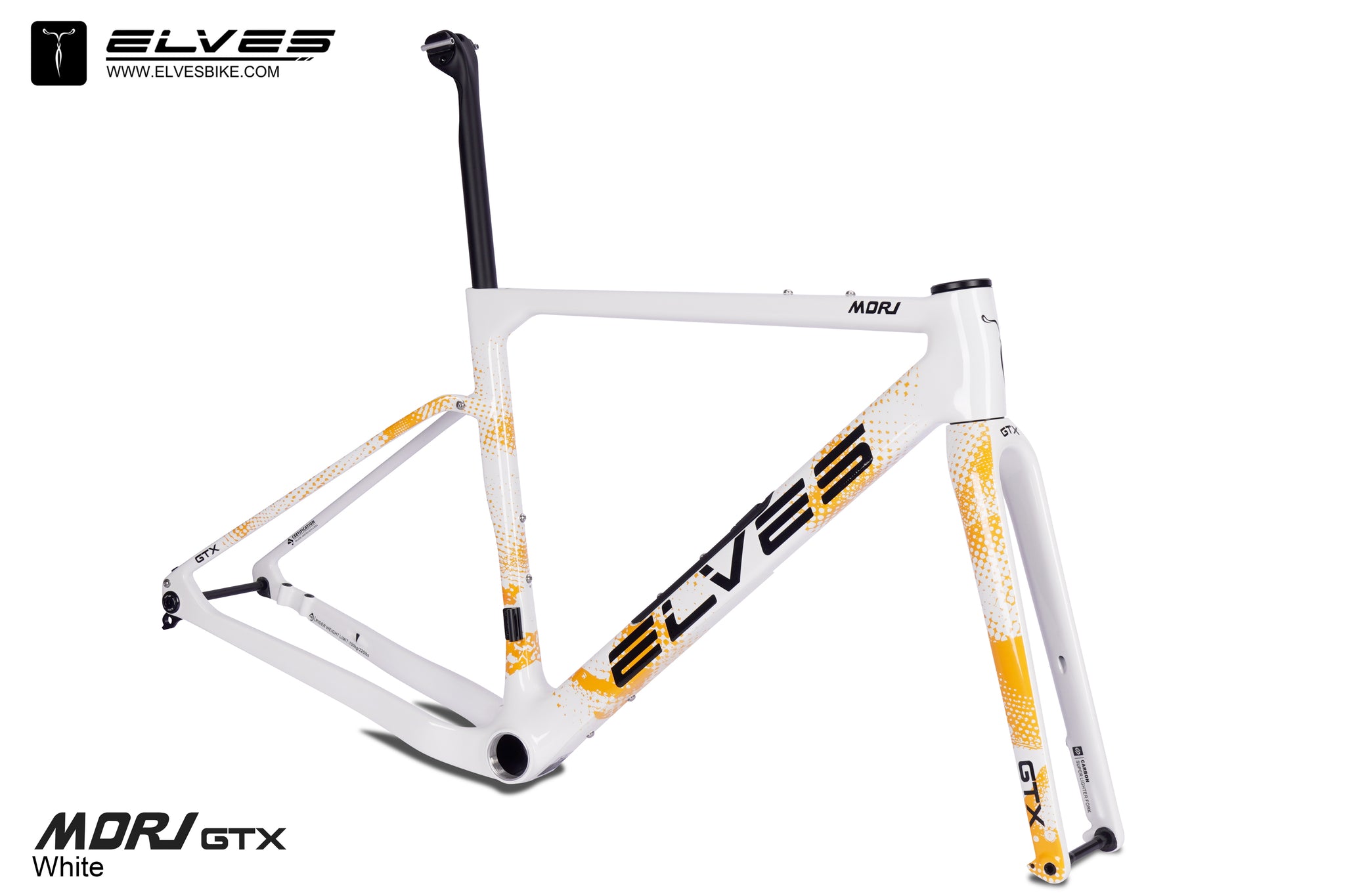

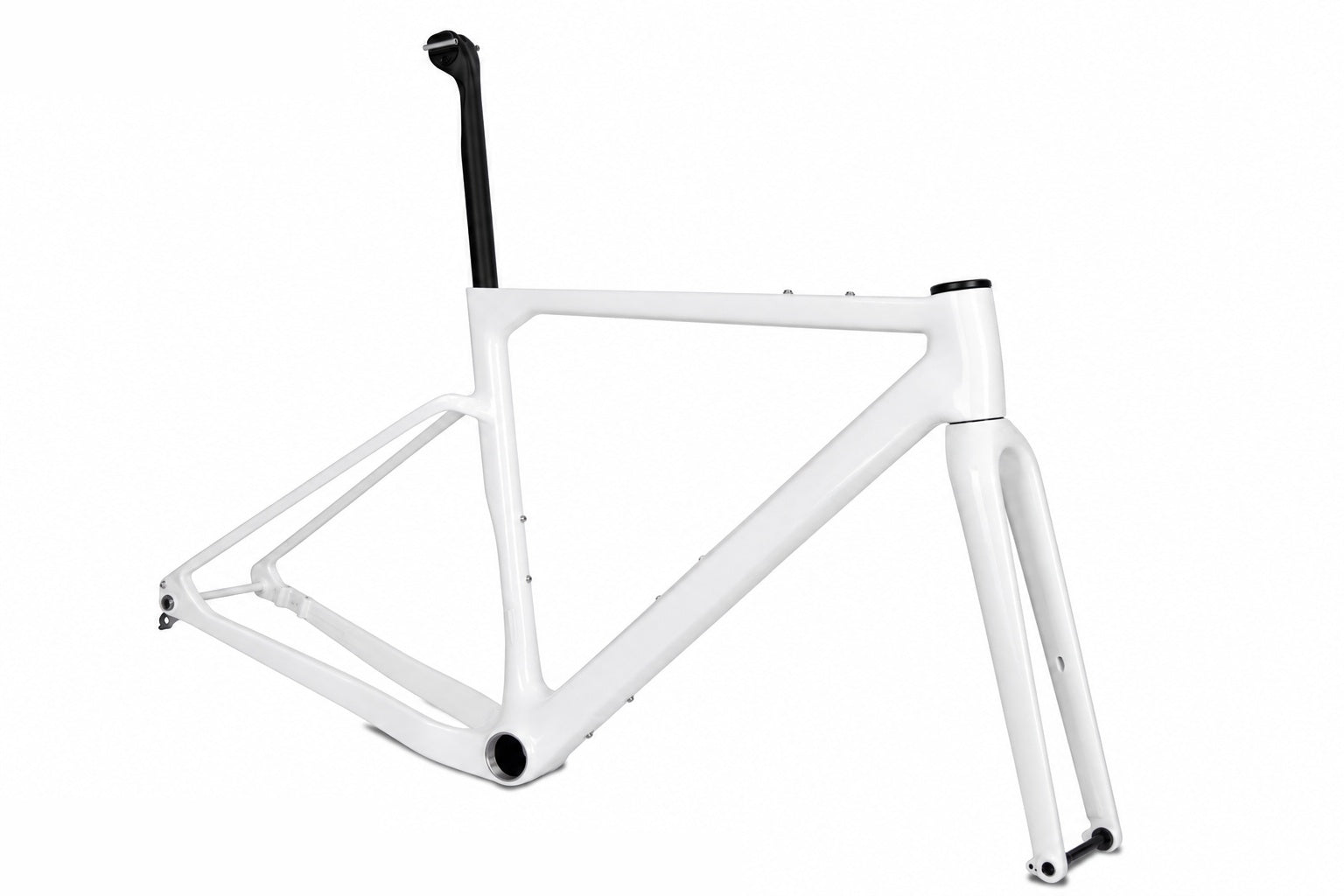

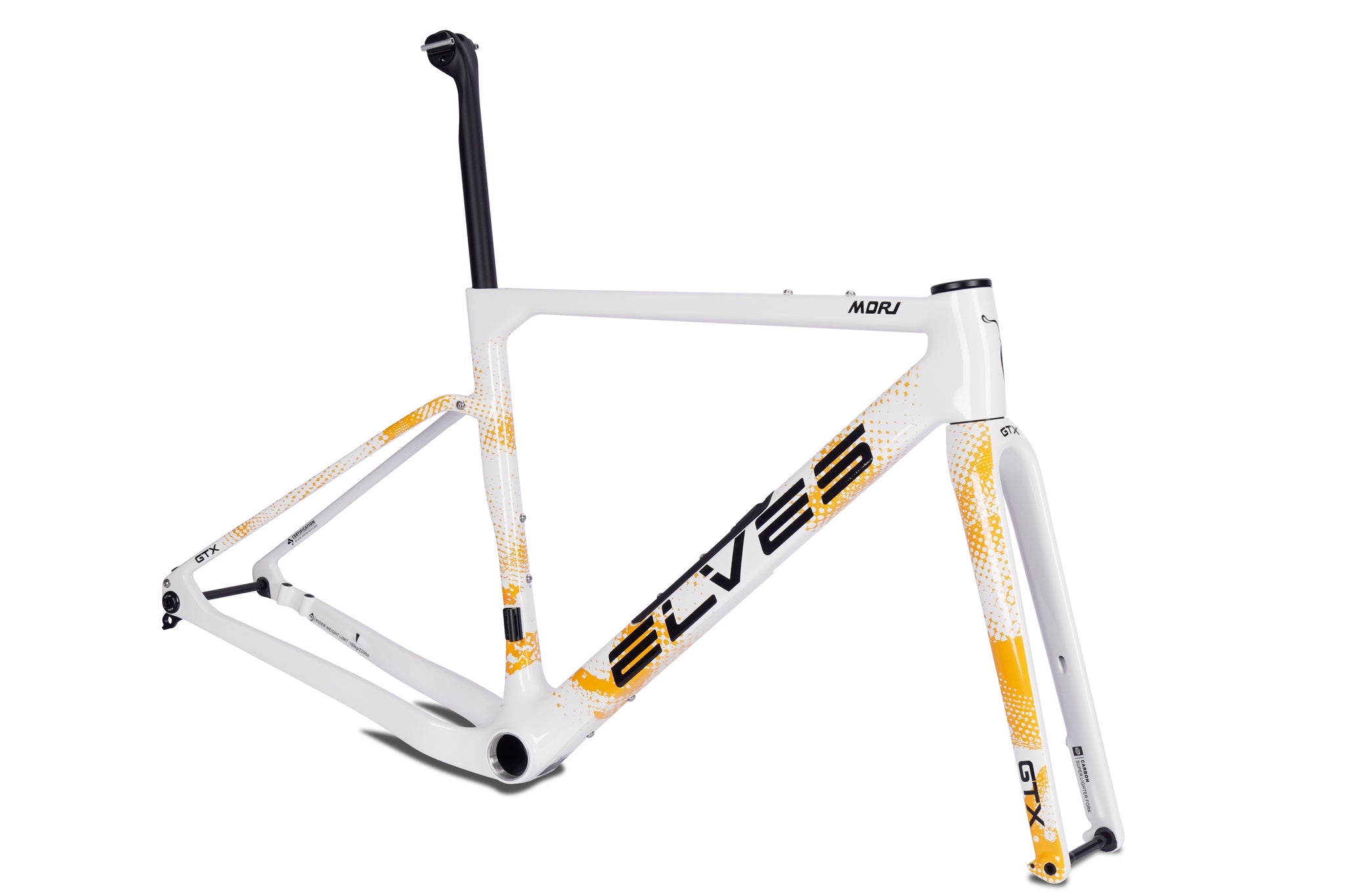

- White

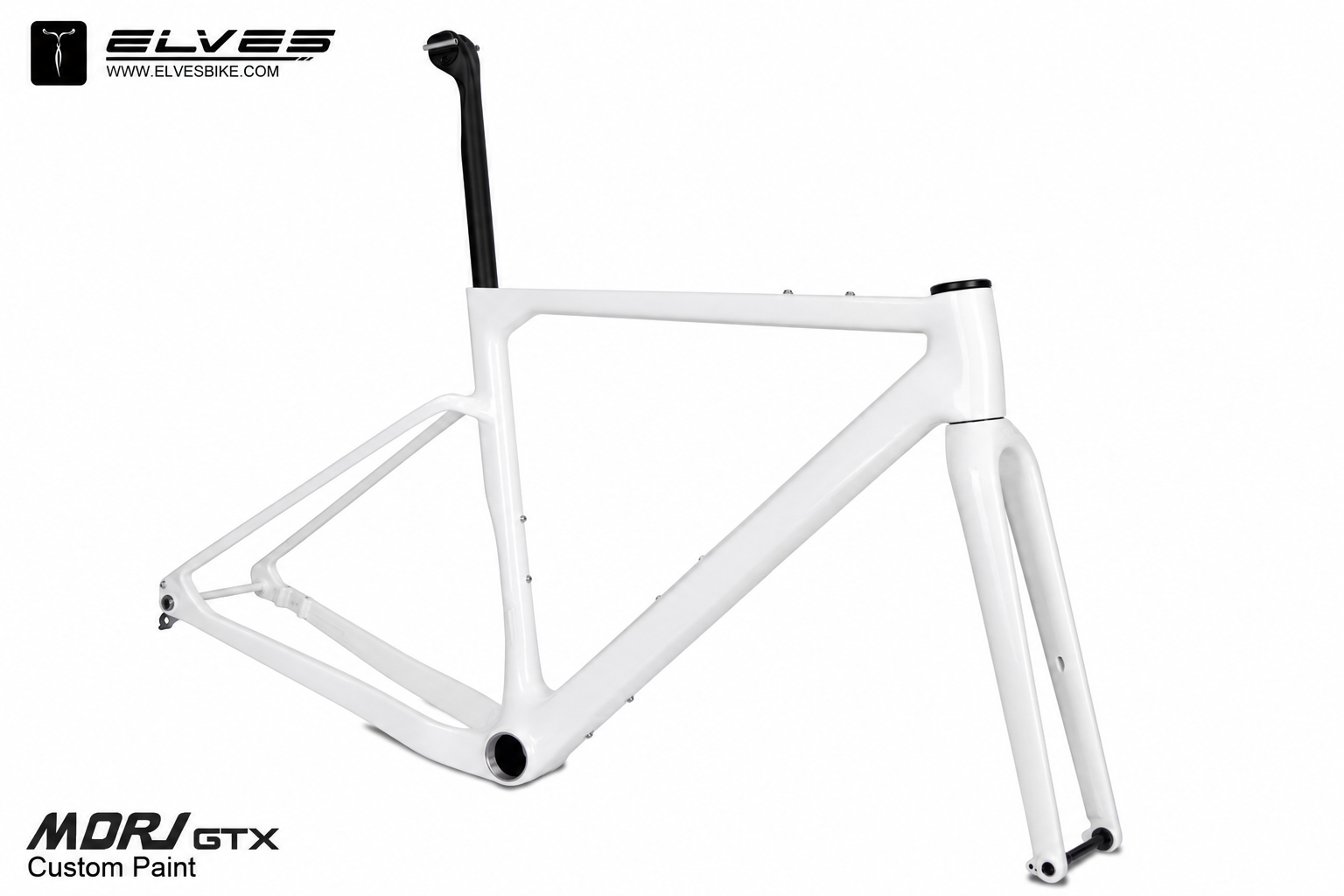

- Custom paint options available
Fork options
Choose from the Carbon Cargo Fork WITH luggage mounting points, or the Carbon Sport Fork WITHOUT luggage mounting points.
For longer rides, bikepacking or carrying extra gear, choose the Cargo Fork. For a cleaner, lighter all-road/gravel setup, choose the Sport Fork.
Who is this frameset for?
The Mori GTX is a good fit if you want one gravel bike that can do more than one job.
- Gravel racing
- Long-distance gravel rides

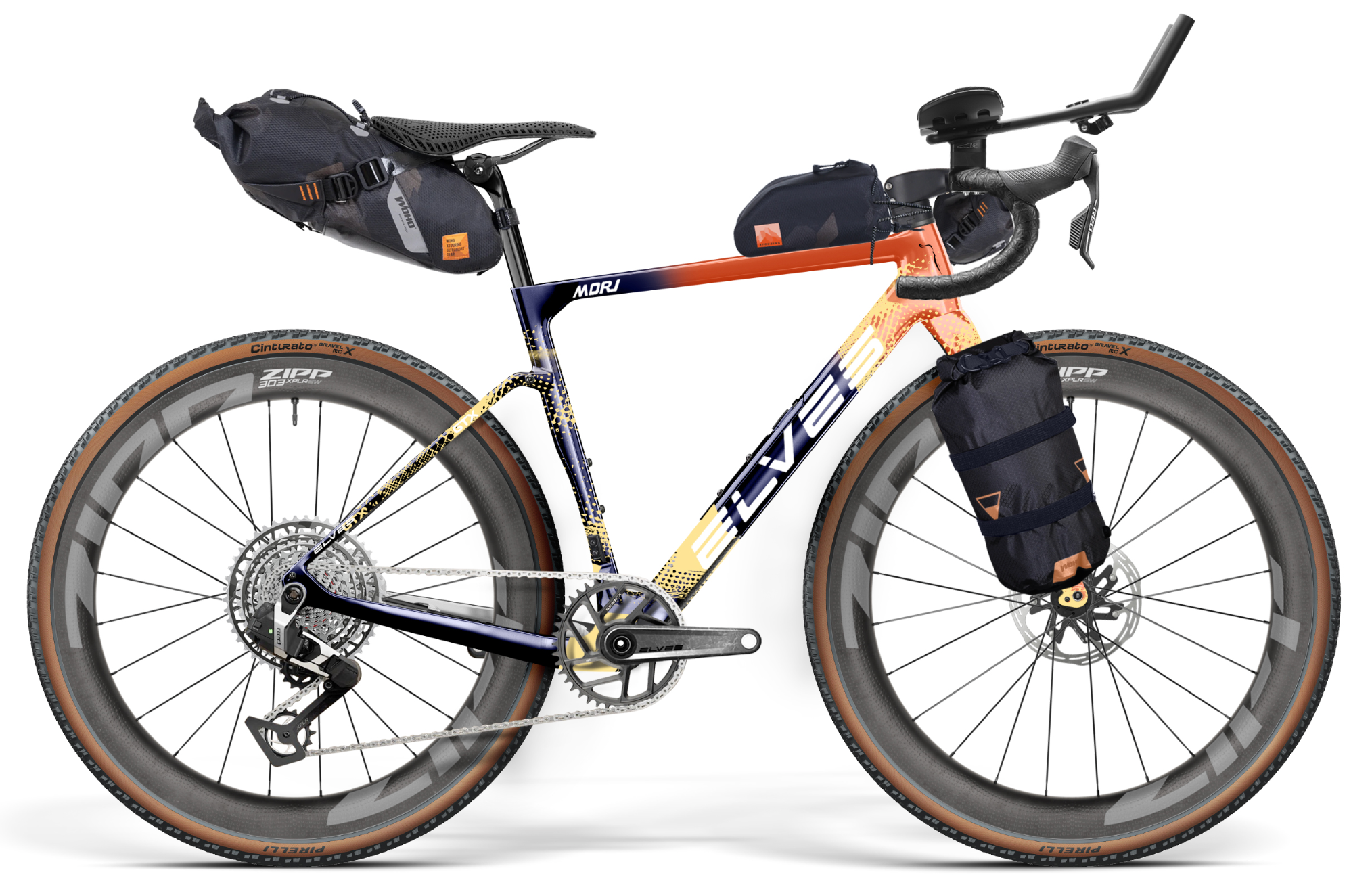

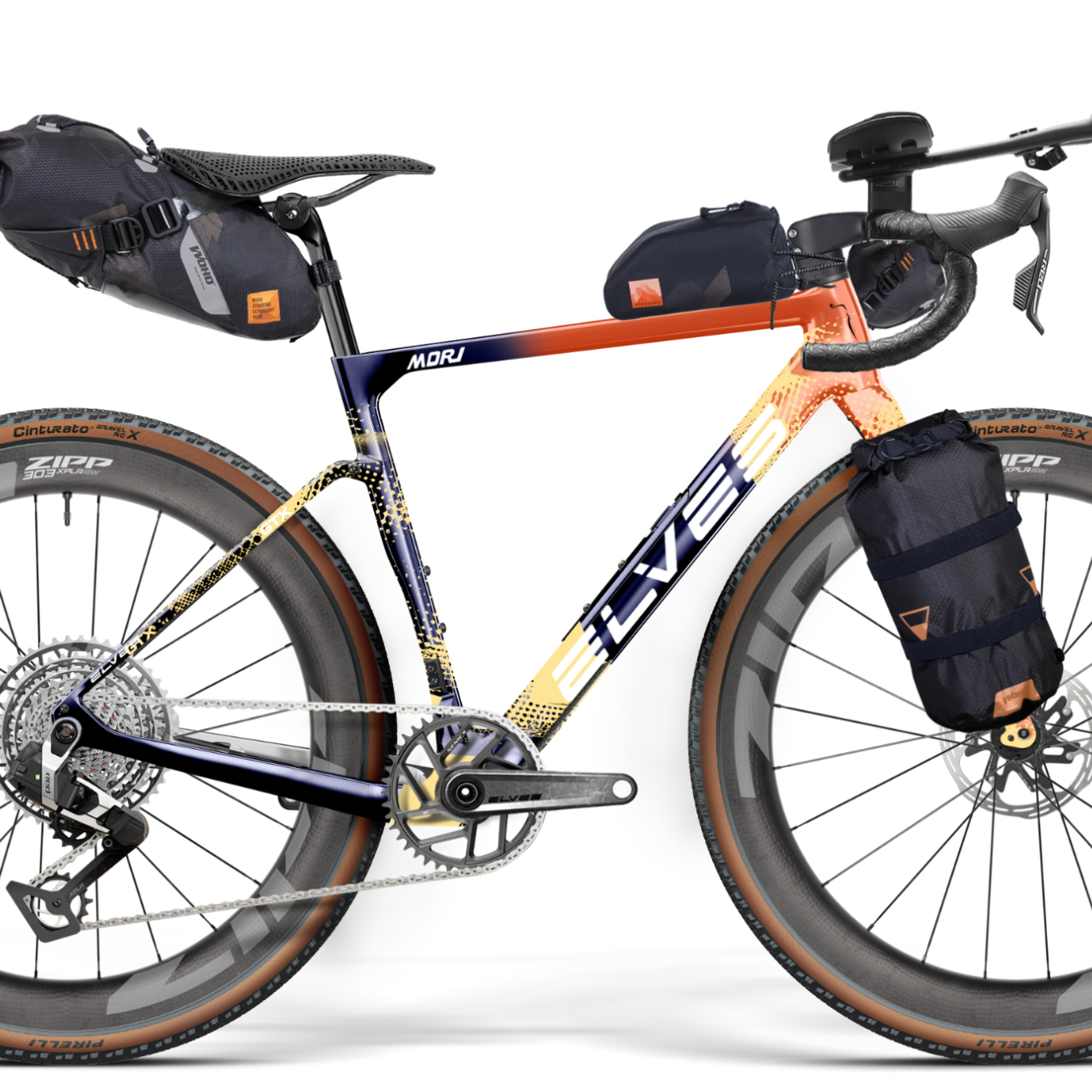

- Bikepacking
- Touring
- All-road riding
- Rougher NZ back roads
- Weekend adventure rides
Not sure whether the Mori GTX or Mori AeroX is the better option? Get in touch and we can help you compare the two.
MoriGTX Size Guide
