Elves Vanyar PRO Disc Carbon Road Frameset
The Elves Vanyar PRO Disc is a lightweight carbon road disc frameset built for climbing, fast road riding and riders who want a responsive race-style setup.
It is the second-generation Vanyar Pro Disc, with fully integrated cable routing, flat mount disc brakes, a press-fit BB386 bottom bracket and clearance for up to 700c x 30c tyres.
If you want a light road frameset that still has modern disc brake control, clean internal routing and enough tyre clearance for real-world NZ roads, the Vanyar PRO Disc is the one to look at.
Want this frameset built into a complete bike?
We can build the Vanyar PRO Disc into a full custom road bike with wheels, handlebars, drivetrain, tyres, saddle and finishing kit selected to suit how you ride.
Not sure what the full build would cost? We can put together a quote based on your preferences, free of charge and with no obligation.
Frames are painted from raw, so custom builds usually take around 5–8 weeks, depending on paint timing and parts availability.
Get in touch before ordering and we can talk through the right setup for your build.
Ask us about a custom buildWhy choose the Vanyar PRO Disc?
The Vanyar PRO Disc is Elves’ lightweight road disc frameset for riders who want a climbing-focused bike that still feels quick on rolling roads, fast bunch rides and longer road days.
It uses Toray T800 and T1000 carbon, with extra stiffness around key areas such as the bottom bracket and head tube. That helps keep the frame responsive when you are climbing, sprinting or putting power down out of corners.
- Lightweight full carbon road disc frameset
- UCI approved
- Toray T800 and T1000 carbon fibre
- Press-fit BB386 bottom bracket
- Flat mount disc brake setup
- Full internal cable routing
- Compatible with Di2 and eTap electronic drivetrains
- Clearance for up to 700c x 30c tyres
- Max rotor size up to 160mm
- Integrated seat clamp
- Seatpost offset options: 12mm or 25mm
Built for climbing and fast road riding
The Vanyar PRO Disc is aimed at riders who want a light, stiff and efficient road frameset without going to a full aero road frame.
The geometry is race-focused, with a climbing position designed to help keep the bike feeling sharp when the road points up. It is a good option if your riding includes climbs, faster road rides, events, training loops or long days where a lighter bike matters.
Key specifications
| Frame | Full carbon, Toray T800 / T1000 |
|---|---|
| Frame sizes | 47cm, 50cm, 53cm, 56cm, 59cm, 62cm |
| UCI status | UCI approved |
| Certification | EN 14766 and ISO 4210-6:2023 |
| Bottom bracket | Press-fit BB386 |
| Bottom bracket size | ID 46mm, width 86.5mm |
| Bottom bracket options | BB386-24R Shimano or BB386-29R SRAM DUB |
| Brake type | Flat mount disc |
| Max rotor size | Up to 160mm |
| Max tyre size | 700c x 30c |
| Drivetrain compatibility | Di2 and eTap compatible |
| Cable routing | Full internal cable routing |
| Rear thru axle | M12 x 1.5 x 163mm / 142mm |
| Fork thru axle | M12 x 1.5 x 121mm |
| Fork offset | 45mm |
| Steerer tube length | 300mm |
| Seatpost | Full carbon seatpost |
| Seatpost length | 400mm |
| Seatpost offset | 12mm or 25mm available |
Frame weights
| Frame weight | From 870g — size 47cm, unpainted, without metal parts |
|---|---|
| Fork weight | 430g — without thru axle |
| Seatpost weight | 215g |
Frame weights are based on manufacturer specifications and may vary depending on size, paint finish, hardware and final build specification.
What’s included
- Elves Vanyar PRO Disc carbon frameset
- Carbon fork
- Carbon seatpost
- 7x7mm alloy saddle rail clamp
- 7x10mm carbon saddle rail clamp
- Elves headset
- Integrated handlebar spacers — 3 x 10mm
- Two standard rear derailleur hangers
- Cable routing adapter for regular stem
- Choice of BB386 bottom bracket option: Shimano 24mm or SRAM DUB 29mm
Handlebars are sold separately. The Vanyar PRO Disc can be built with Elves AeroEvo handlebars or set up with a regular bar and stem using the supplied adapter.
Available colours

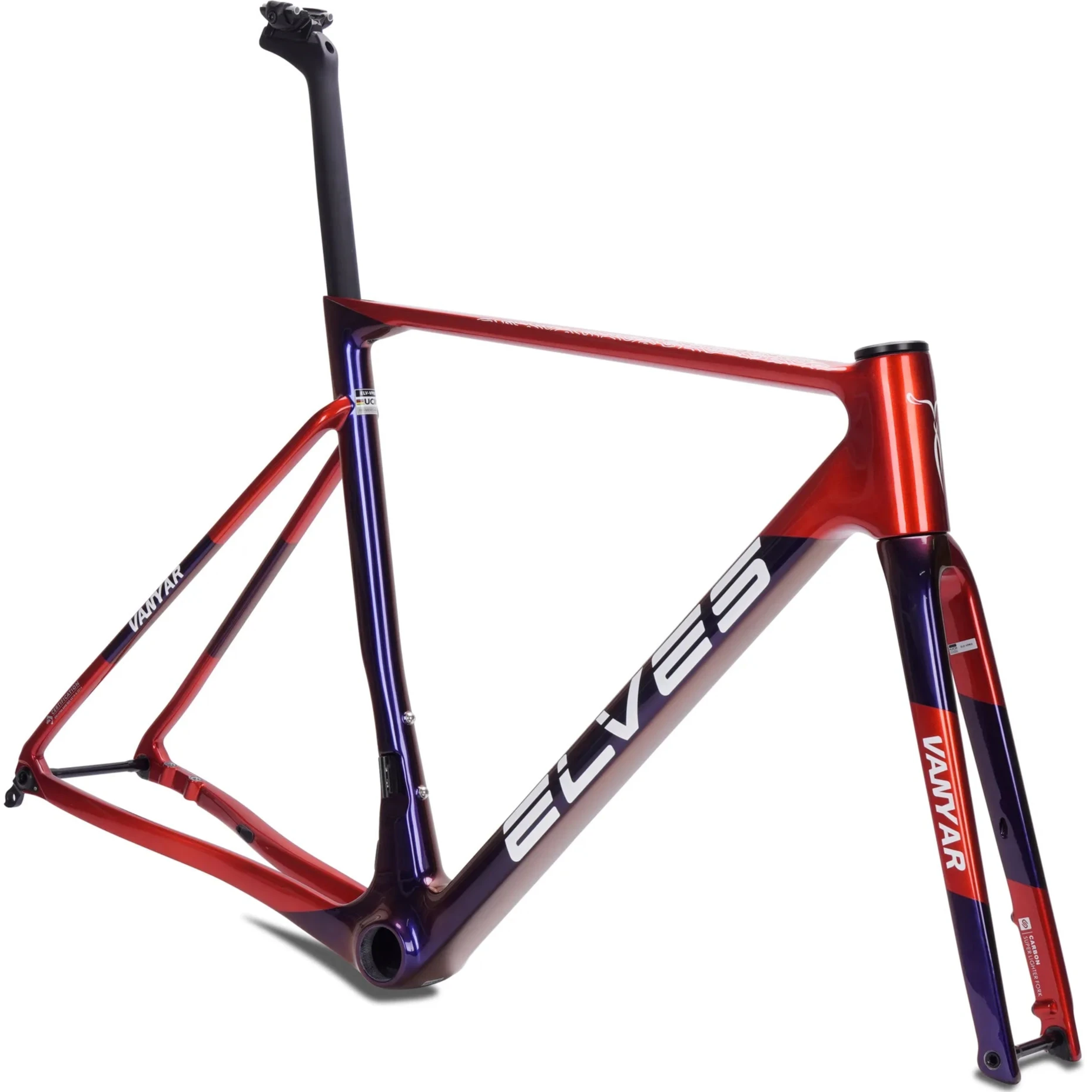

- Chameleon Navy Blue & Transparent Red

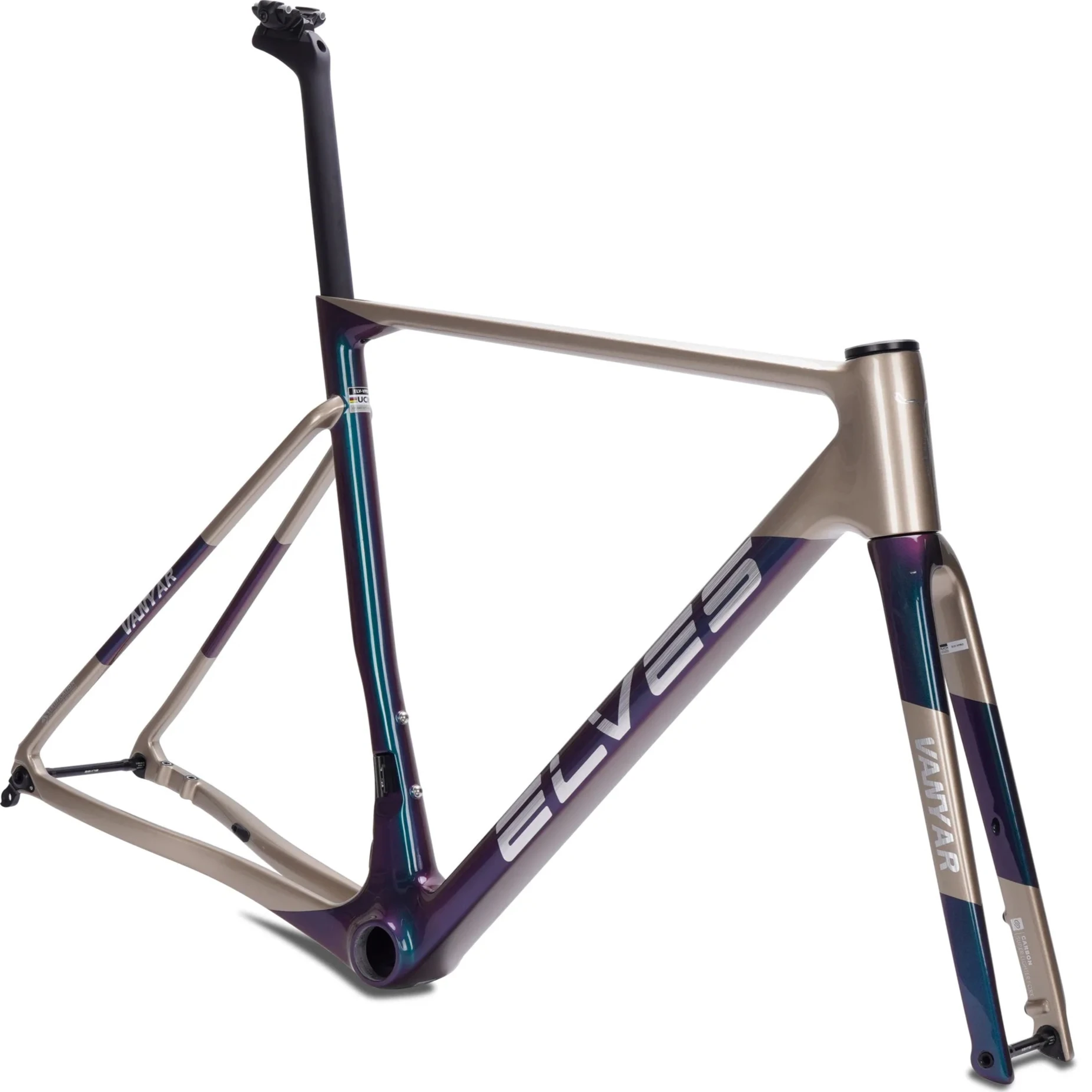

- Chameleon Forest Green & Champagne Golden

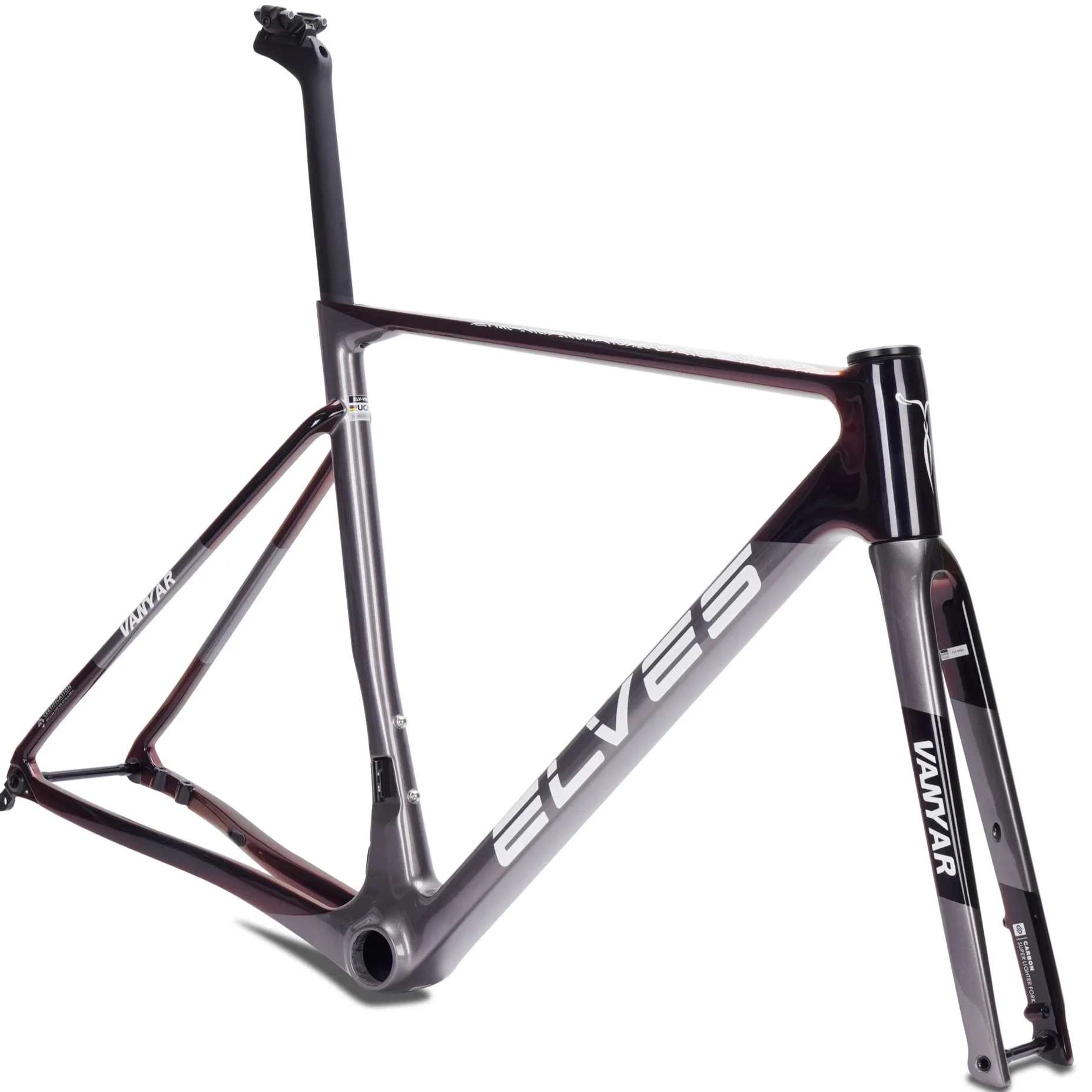

- Gun Gray & Chameleon Black Red

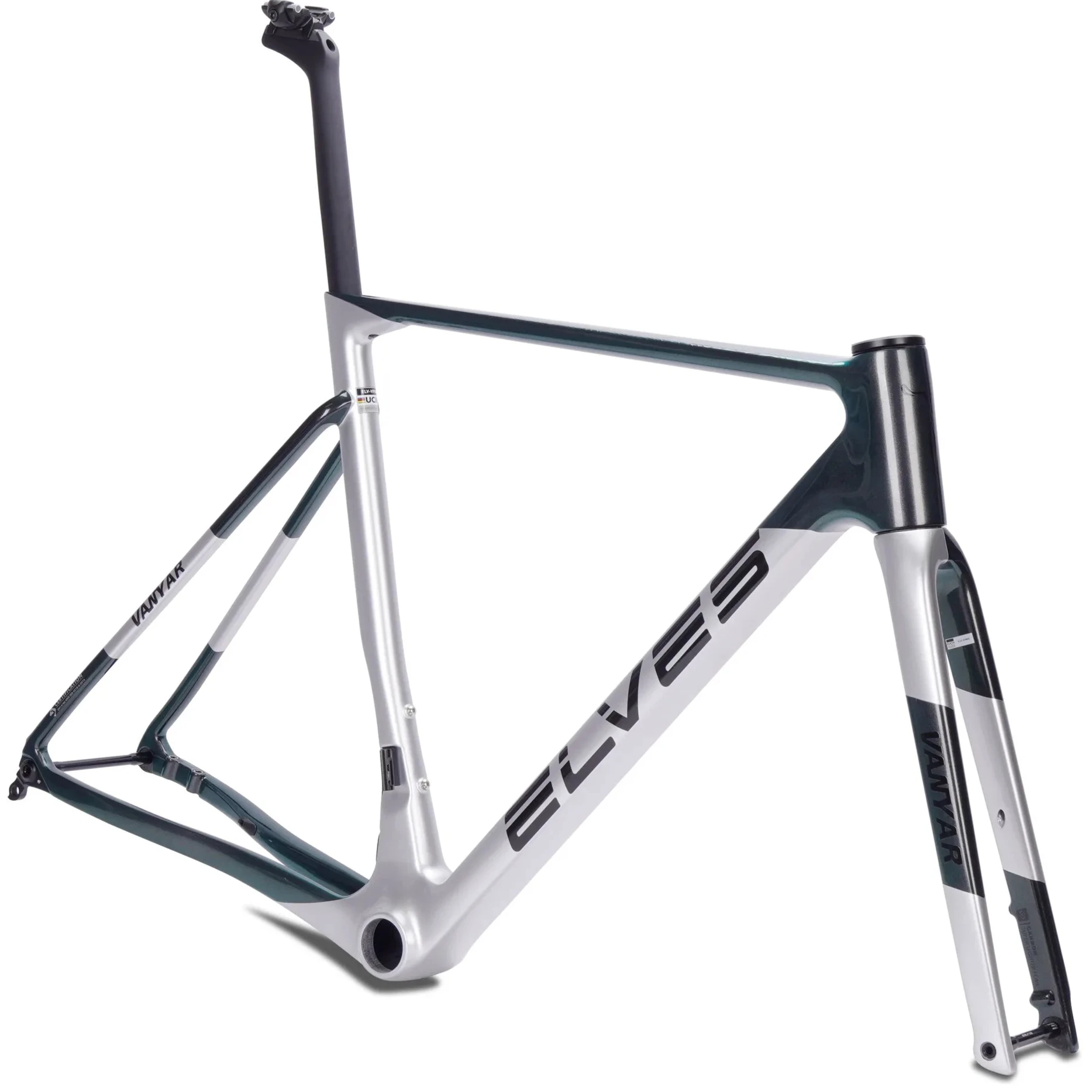

- Silver & Chameleon Green Gray

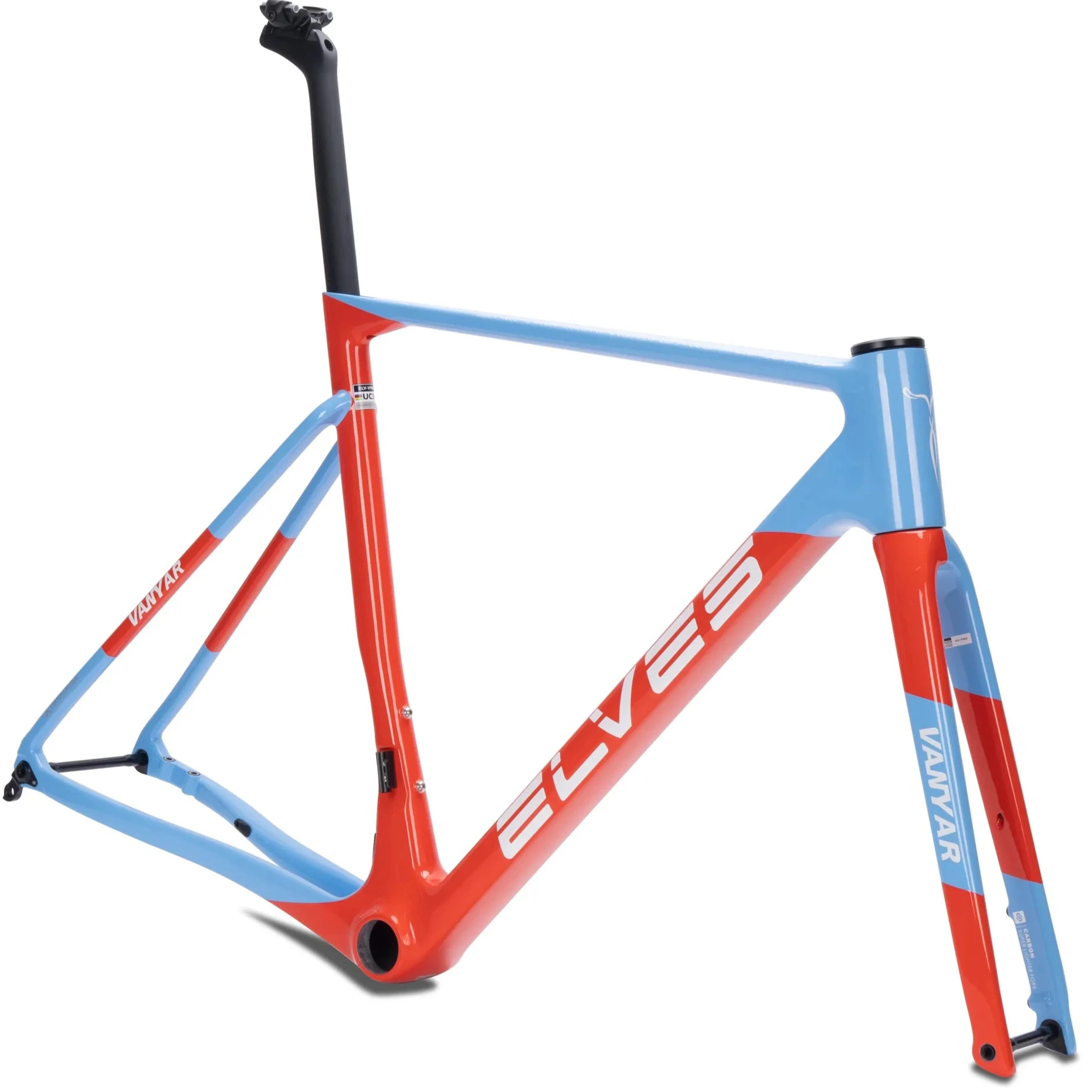

- Blazing Orange & Elegant Blue
- Matt Black & Glossy Piano Black

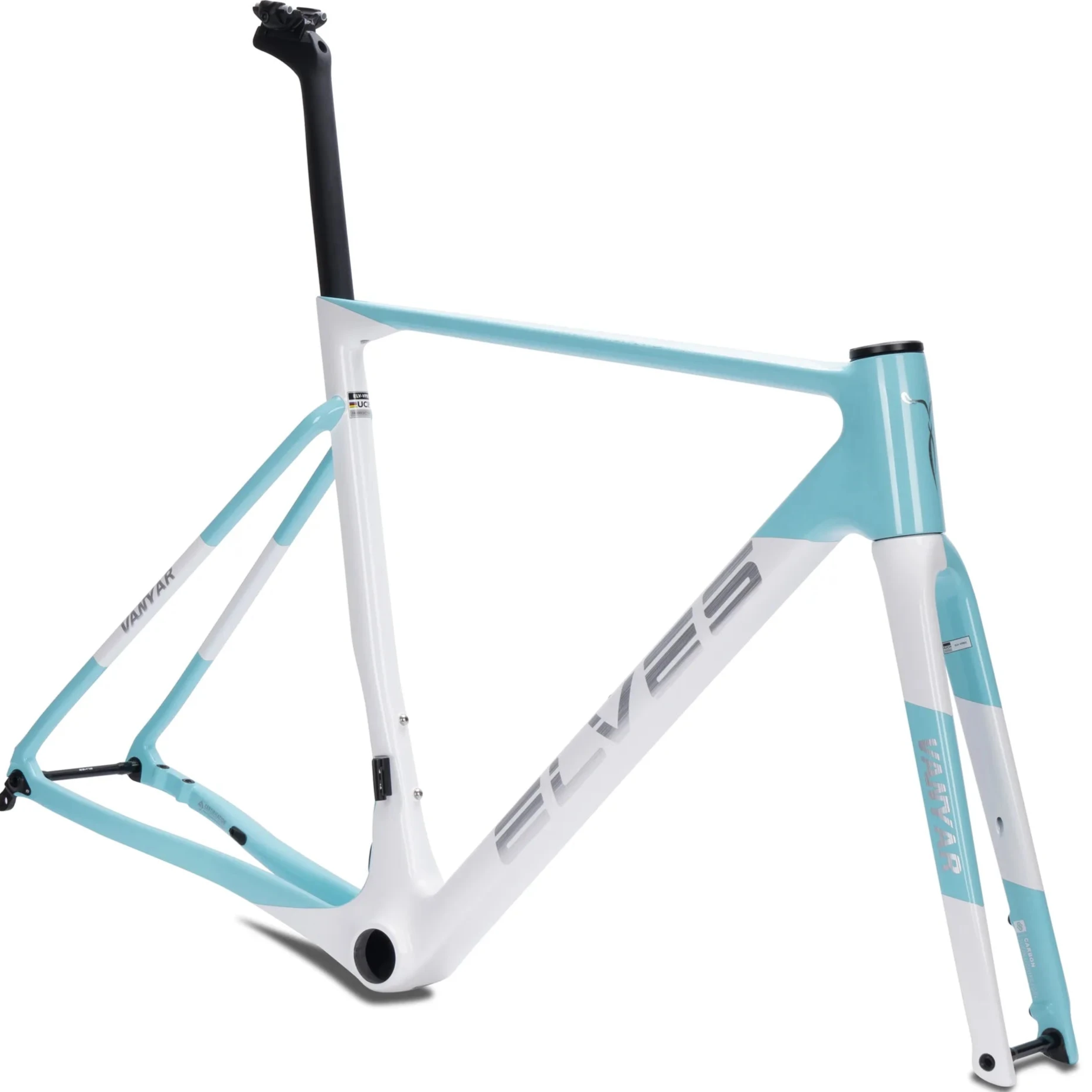

- White & Tiffany Blue
- Custom paint options available
Who is this frameset for?
The Vanyar PRO Disc is a good fit if you want a lightweight carbon road disc frameset for climbing, fast road rides, training, events or a custom road build that does not need to be a full aero race bike.
Not sure whether the Vanyar PRO Disc, Falath or another Elves road frameset is the right option? Get in touch and we can help you compare the options.
